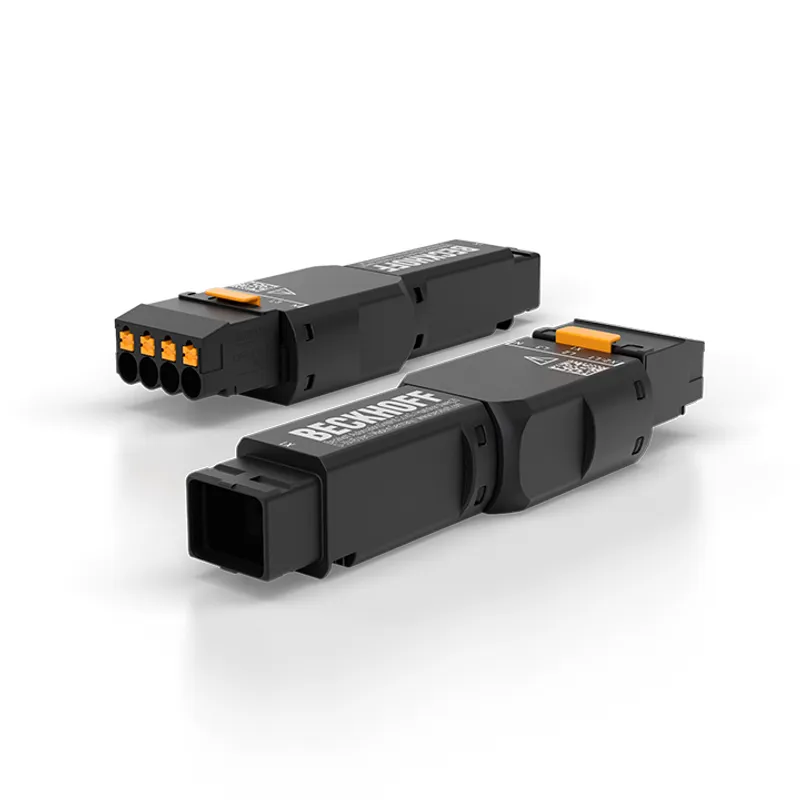

Beckhoff SVL1423

Low power transformer, 3-channel voltage interface, 690 V AC, accuracy class 0.5, electronic nameplate, RJ45

MPN: SVL1423
Category: SVL1xxx | Low power voltage transformer

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff SVL1423?

The SVL1xxx 3-phase measurement system with RJ45 connection enables all three primary conductor voltages to be recorded simultaneously. Thanks to the 333 mV output signals, all instrument transformers can easily be connected via patch cable and also have

Specifications

Measuring voltage	400 V ULN, 690 V ULL
Measurement class/overvoltage class	600 V CAT III, (in preparation: 600 V CAT IV), according to EN61010-2-030
Accuracy class	0.5
Electronic nameplate	yes
Secondary signal	333 mV
Dimensions (W x H x D)	34 mm x 20.8 mm x 98.4 mm
Weight	approx. 45 g
Operating temperature	-40…+65°C
Storage temperature	-45…+85°C
Relative humidity	95%, no condensation
Approvals/markings	CE
