Beckhoff SCT5564

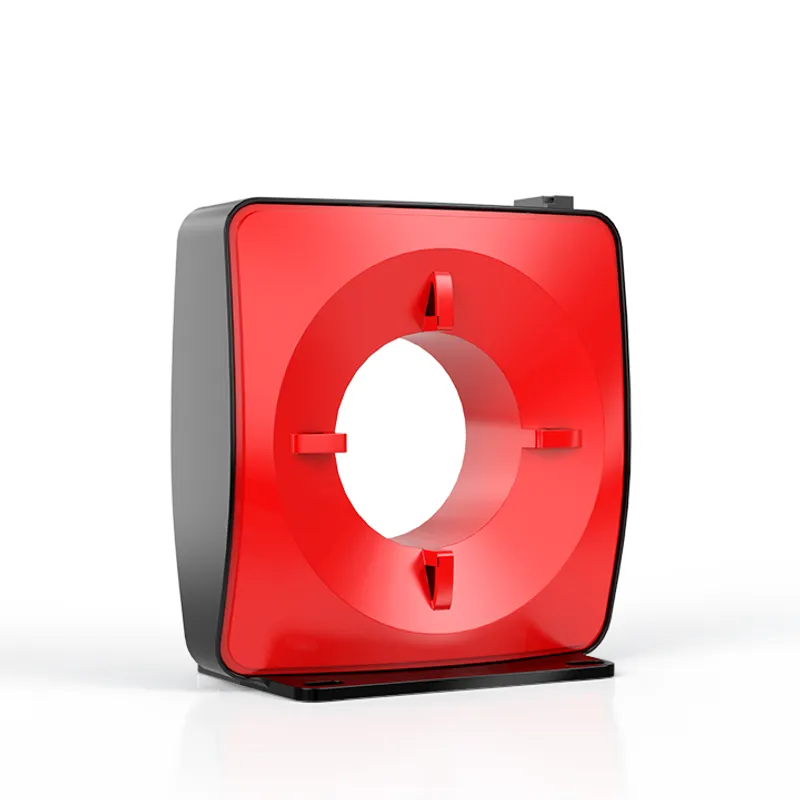

Ring-type CT, differential current type B/B+, 0.4/2 A, size 5

MPN: SCT5564
Category: Übersicht Stromwandler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff SCT5564?

The SCT5564 differential current transformer can be used as a residual current monitor (RCM). The SCT5564 type B/B+ can measure DC and AC residual currents with frequencies up to 100 kHz ranging from 0 to 2 A. With its selectable settings, the RCM is a

Specifications

Measuring range differential current (IΔn)	0…0.4 A and 0…2 A, DC-100 kHz, type B/B+
Technology	fluxgate current measurement technology
Primary current	100 A (IΔn = 30 mA) or 300 A (IΔn ≥ 100 mA)
Permissible primary current frequency range	0…400 Hz
Secondary signal	4…20 mA
Update interval	1 ms (1 ksps)
Measurement error/uncertainty	typ. ±2.0% relative to full scale value, see documentation
Output relay	max. 30 V and 1 A AC/DC
Max. diameter round conductor	70 mm
Rated voltage	690 V
Power supply	24 V DC (-10%/+15%)
Special features	Test button for triggering a test routine, can also be triggered via external DO, EN/IEC 62020-1:2020.
Size	5
Dimensions (W x H x D)	151.3 mm x 161 mm x 83.4 mm
Operating temperature	-20…+55°C
Storage temperature	-40…+85°C
Approvals/markings	CE
