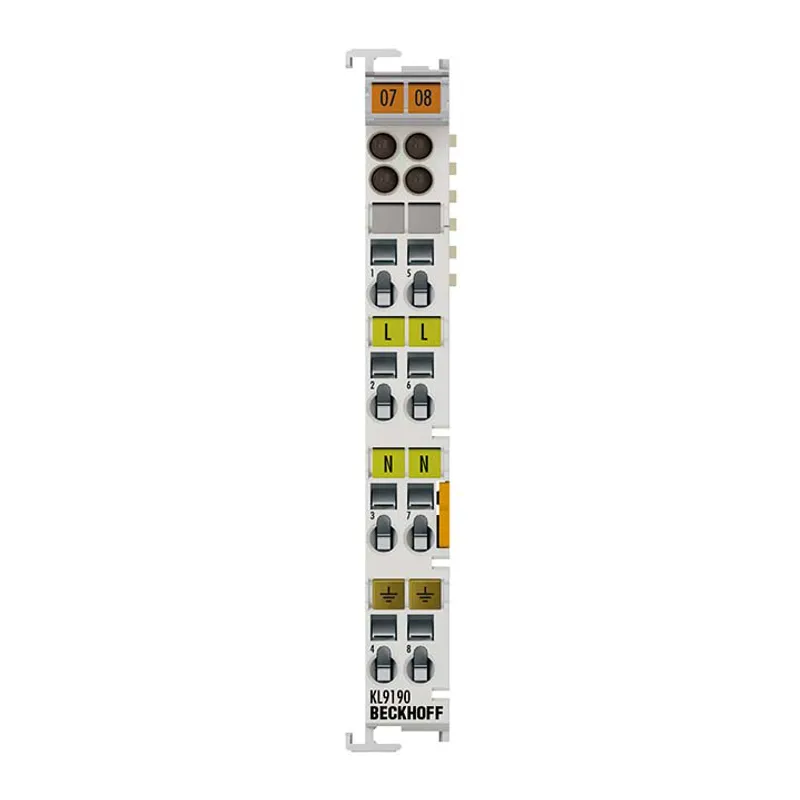

Beckhoff KL9190
Potential supply terminal, any voltage up to 230 V AC
- MPN
- KL9190
- Category
- KL9xxx | System
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff KL9190?
The KL9190 power feed terminal makes it possible to set up various potential groups with any desired voltages up to
Specifications
Specifications
| Current load | ≤ 10 A |
| Integrated fine-wire fuse | – |
| Power LED | – |
| Defect LED | – |
| Diagnostics | – |
| Current consumption K-bus | – |
| Nominal voltage | arbitrary |
| Electrical isolation | yes |
| Reported to K-bus | – |
| Shield connection | – |
| Renewed infeed | yes |
| Connection facility to additional power contact | 1 |
| K-bus, looped through | yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Housing width | 12 mm |
| Weight | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
