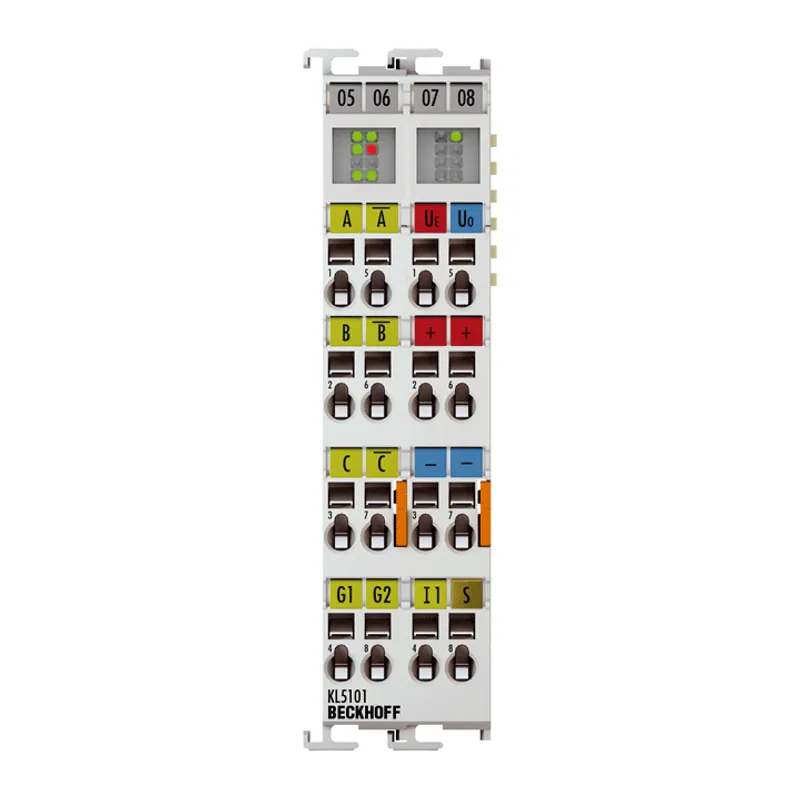

Beckhoff KL5101
Bus Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz
- MPN
- KL5101
- Category
- KL5xxx | Position measurement
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff KL5101?
The KL5101 Bus Terminal is an interface for direct connection of incremental encoders with differential signals (RS422) or TTL single-ended signals. A 16 bit counter with quadrature decoder and a 16 bit latch for the zero pulse or input G1 can be read
Specifications
Specifications
| Technology | incremental encoder interface RS422 |
| Number of channels | 1 incremental encoder + 1 input |
| Encoder connection | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC |
| Encoder operating voltage | 5 V DC |
| Encoder output current | 0.5 A |
| Counter | 16 bit, binary |
| Limit frequency | 4 million increments/s (with 4-fold evaluation) |
| Quadrature decoder | 1-, 2-, 4-fold evaluation |
| Zero-pulse latch | 16 bit |
| Commands | read, set, enable |
| Power supply | 24 V DC (-15%/+20%) |
| Current consumption power contacts | – (no power contacts) |
| Current consumption K-bus | typ. 60 mA |
| Bit width in the process image | input: 1 x 16 bit data, 1 x 8 bit control/status |
| Weight | approx. 85 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
