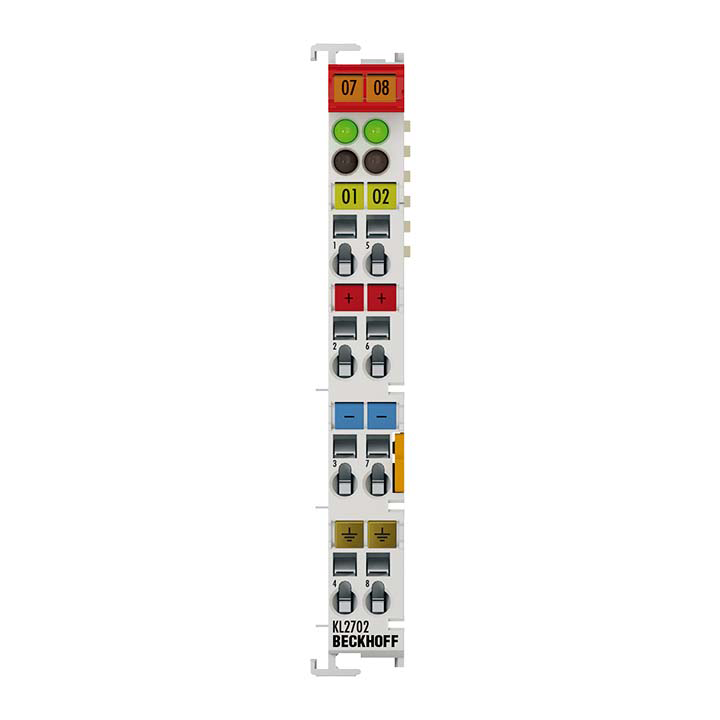

Beckhoff KL2702

Bus Terminal, 2-channel solid-state relay output, 0…230 V AC/DC, 0.3 A

MPN: KL2702
Category: KL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL2702?

The KL2702-xxxx output terminal uses an electronic load relay to switch a mains voltage of up to 230 V AC/DC. The switching element is a high-power MOSFET, which is connected to the power contact potential. As a semiconductor switch, it is not subject to

Specifications

Connection technology	2-/3-/4-wire
Number of outputs	2 x make contacts
Nominal voltage	0…230 V AC/DC
Load type	ohmic, inductive
Max. output current	1.5 A steady load per channel
Rotating field frequency	DC…100 Hz
Surge voltage protection	from 400 V AC
Peak current	2.5 A (20 s), 7.5 A (100 ms)
Contact resistance	0.3 Ω typ., 0.4 Ω max.
Switch-on time	0.2…0.4 ms
Switch-off time	5…8 ms
Switch-on delay	320 µs
Switch-off delay	6.2 ms
Residual voltage	(200 mΩ)
Electrical isolation	500 V (K-bus/field voltage), 2500 V AC (1 min.)
Leakage current (OFF state)	1 mA
Current consumption power contacts	only leakage and load current
Current consumption K-bus	typ. 50 mA
Bit width in the process image	2 outputs
Configuration	no address or configuration setting
Weight	approx. 55 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	–
Approvals/markings	CE
Ex marking	–
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
