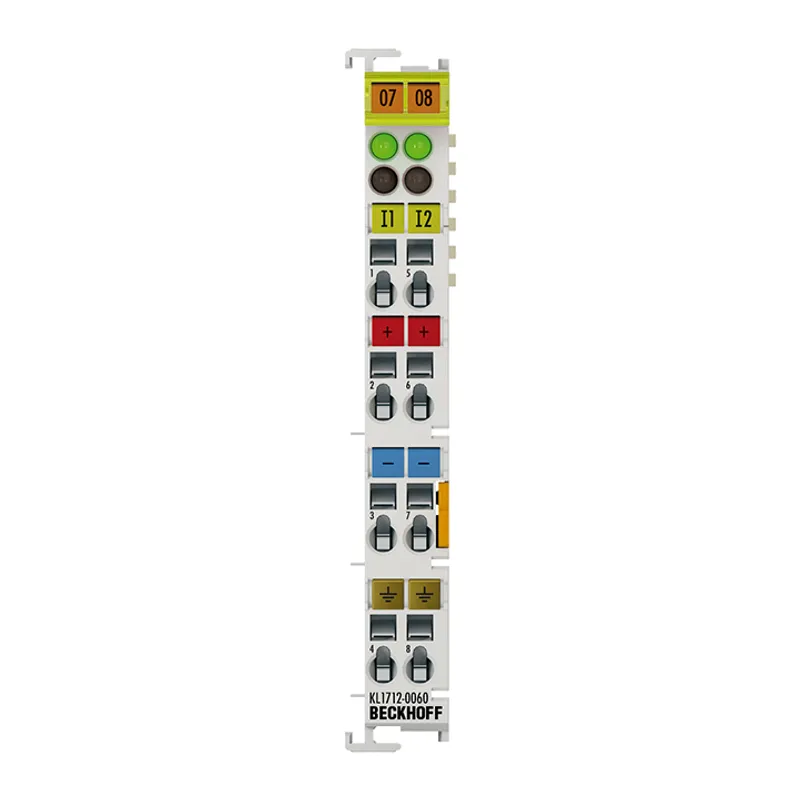

Bus Terminal, 2-channel digital input, 60 V DC, 10 ms
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | KL1xxx | Digital input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can KL1712-0060 be shipped?
KL1712-0060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KL1712-0060 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KL1712-0060 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KL1712-0060, subject to availability and destination.
The KL1712-0060 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The direct connection of 60 V DC signals for DC voltage is
Specifications
Specifications
| Connection technology | 4-wire |
| Number of inputs | 2 |
| Nominal voltage | 60 V DC |
| “0” signal voltage | 0…20 V |
| “1” signal voltage | 40…70 V |
| Input filter | typ. 10 ms |
| Input current | > 3 mA, typ. 6 mA |
| Current consumption K-bus | typ. 3 mA |
| Switching times | 10 ms |
| Electrical isolation | 500 V (K-bus/mains voltage); 3750 V AC, 1 min. |
| Bit width in the process image | 2 inputs |
| Configuration | no address or configuration setting |
| Special features | 60 V DC rail applications |
| Weight | approx. 60 g |
| Storage temperature | -25…+85°C |
| Operating temperature | 0…55°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
