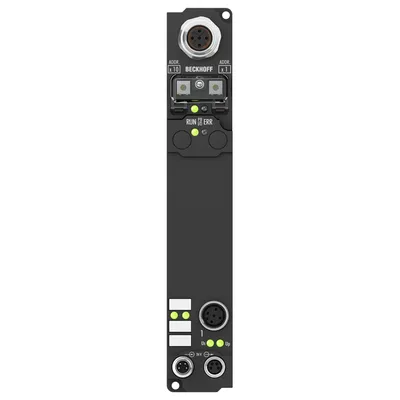

Beckhoff – IP6012-B800 Fieldbus Box, 2-channel communication interface, RS485, serial, TTY, 20 mA, M12

MPN: IP6012-B800 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IP6012-B800 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IP6012-B800 now that it is discontinued?

Yes. Beckhoff has discontinued the IP6012-B800, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IP6012-B800 be shipped?

IP6012-B800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IP6012-B800 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IP6012-B800 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP6012-B800, subject to availability and destination.

The IP6012 serial interface module allows the connection of devices with a 20 mA current interface. The interface operates passively. The module transmits the data in a fully transparent manner to the higher-level automation device. The data is

Beckhoff IP6012-B800 — Fieldbus Box, 2-channel communication interface, RS485, serial, TTY, 20 mA, M12. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Data transfer channels	2 (1/1), TxD and RxD
Data transfer rates	1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset
Connection method	M12, screw type
Nominal voltage	24 V DC (-15%/+20%)
Bit transfer	2 x 20 mA
Load	< 500 Ω
Cable length	max. 1000 m twisted pair
“0” signal current	0…3 mA
“1” signal current	14…20 mA
Data buffer	128 bytes receive buffer, 16 bytes transmit buffer
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Current consumption from U S (without sensor current)	see documentation
Bit width in the process image	input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible)
Electrical isolation	TTY/control voltage: 500 V, to the fieldbus: depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Protocol	open, documented protocol
Configuration	via KS2000
Bus interface	1 x M12 socket, 5-pin, B-coded
Data transfer medium	shielded copper cable, 2 x 0.25 mm²
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Weight	approx. 210 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
