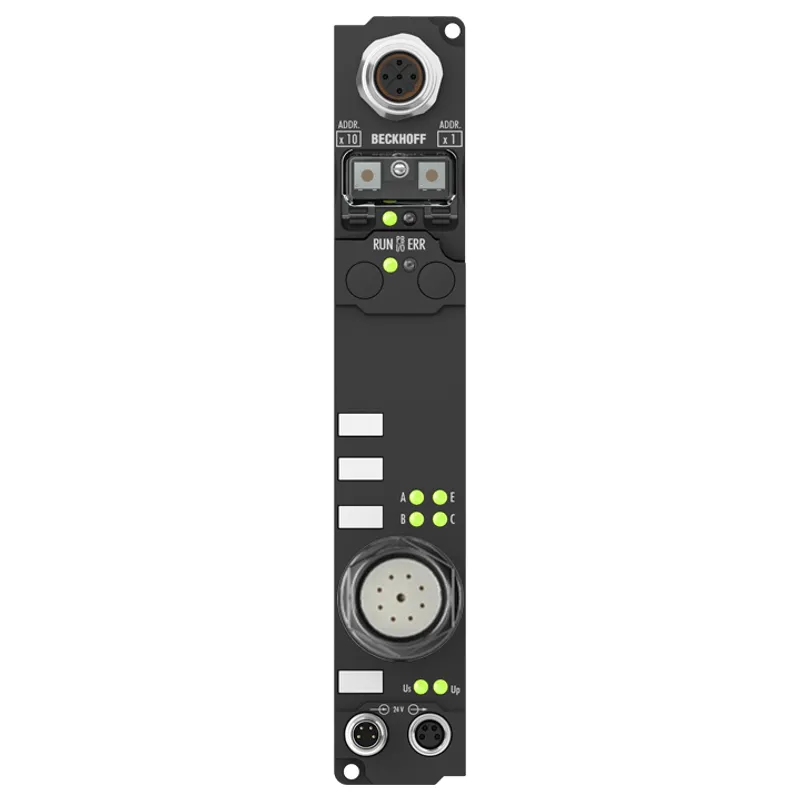

Beckhoff – IP5209-B730-1000 Fieldbus Box, 1-channel encoder interface, Modbus, SinCos, 11 µApp, M23

MPN: IP5209-B730-1000 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IP5209-B730-1000 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IP5209-B730-1000 now that it is discontinued?

Yes. Beckhoff has discontinued the IP5209-B730-1000, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IP5209-B730-1000 be shipped?

IP5209-B730-1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IP5209-B730-1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IP5209-B730-1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP5209-B730-1000, subject to availability and destination.

The SinCos module IP5209-Bxxx serves as interface for the direct connection of a measuring sensor, for example a measuring probe with sinusoidal voltage output 1 VPP to the higher-level fieldbus. In contrast to the standard version, instead of a voltage

Beckhoff IP5209-B730-1000 — Fieldbus Box, 1-channel encoder interface, Modbus, SinCos, 11 µApp, M23. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Connection technology	M23 connector with outer thread, 12-pin
Number of channels	1
Connection encoder/sensor	M23 connector with outer thread, 12-pin
Nominal voltage	24 V DC (-15%/+20%)
Signal input	1 V PP
Encoder supply	5 V DC
Sensor supply	5 V DC from control voltage, max. 0.5 A
Limit frequency	100 kHz (scanning of the input signals with 500 kHz)
Resolution	10 bit, 1024 steps per period
Commands	set count, evaluate reference mark latch, change of direction, frequency control
Data transfer rates	–
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Current consumption from U S (without sensor current)	130 mA
Bit width in the process image	input/output: 2 x 32 bit data, 1 x 8 bit control/status
Electrical isolation	depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Protocol	RTU/ASCII
Configuration	by means of address selection switch or KS2000
Bus interface	1 x M12 socket, 5-pin, B-coded
Data transfer medium	screened, twisted copper cable 2 x 0.25 mm² (RS485)
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Distance between stations	max. 1200 m (depending on baud rate)
I/O communication types	read/write access, optionally bit oriented or word oriented
Weight	approx. 210 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
