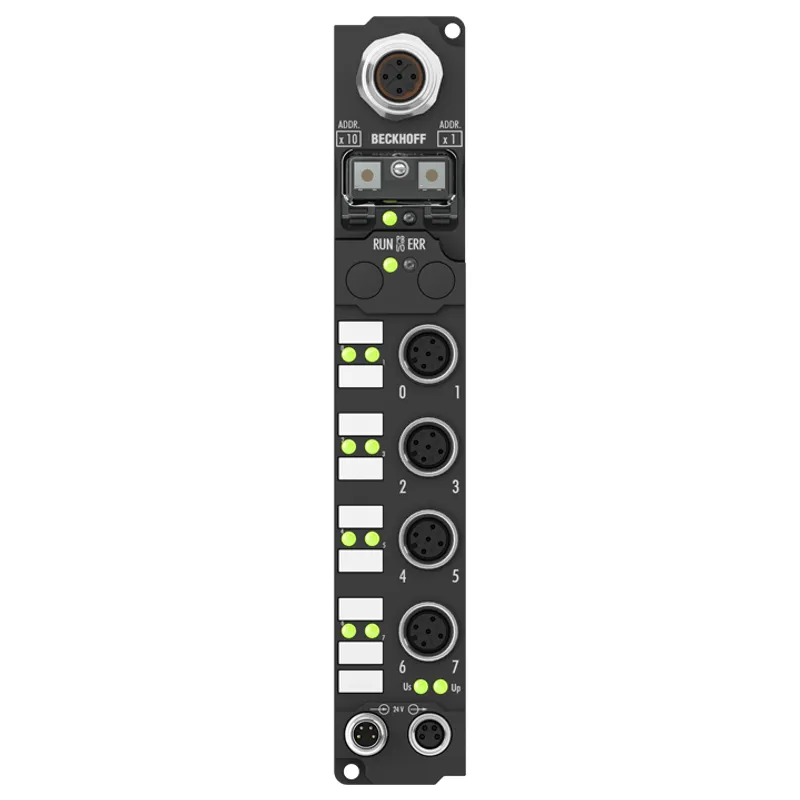

Beckhoff – IP4132-B200 Fieldbus Box, 4-channel analog output, Lightbus, voltage, ±10 V, 16 bit, differential, M12

MPN: IP4132-B200 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IP4132-B200 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IP4132-B200 now that it is discontinued?

Yes. Beckhoff has discontinued the IP4132-B200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IP4132-B200 be shipped?

IP4132-B200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IP4132-B200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IP4132-B200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP4132-B200, subject to availability and destination.

The IP4132 analog output module generates analog output signals in the range from -10 to +10 V. The voltage is supplied to the process level with a resolution of 16 bits, and is electrically isolated. If necessary, the output scaling can be altered.

Beckhoff IP4132-B200 — Fieldbus Box, 4-channel analog output, Lightbus, voltage, ±10 V, 16 bit, differential, M12. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of channels	4 analog outputs
Number of outputs	4
Output connections	M12, screw type
Signal current	-10/0…10 V
Nominal voltage	24 V DC
Load	> 5 kΩ
Resolution	16 bit
Conversion time	< 4 ms
Measurement error/uncertainty	< ±0.1% (relative to full scale value)
Actuator supply	from the auxiliary voltage U P
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	output: 4 x 16 bit data, optional: 4 x 8 bit control/status
Electrical isolation	channels/control voltage: yes, between the channels: no, control voltage/fieldbus: depends on the bus system
Current consumption from U S (without sensor current)	see documentation
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Configuration	via KS2000 or the controller
Data transfer rates	2.5 Mbaud
Bus interface	2 x fiber-optic socket for plug ZS1020-0010
Data transfer medium	fiber-optic conductor: APF (plastic) fiber (1,000 µm)
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Auxiliary power current	according to I/O type
Distance between stations	45 m
Data transfer time	0.26 ms in the case of 10 modules for 32 bit input and output each (without IP-Link)
Weight	approx. 250 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
