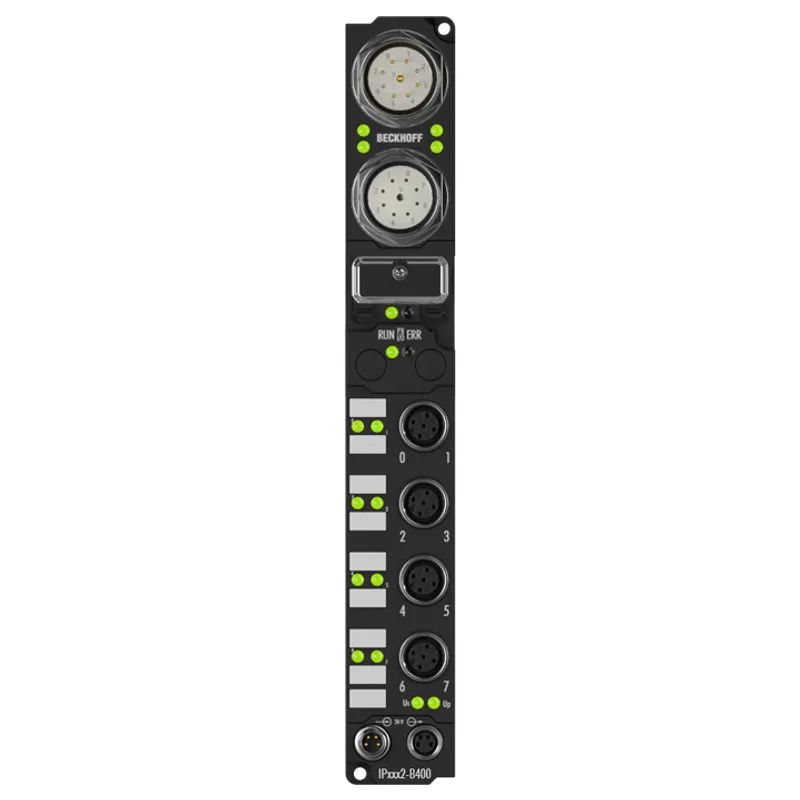

Beckhoff – IP3202-B400 Fieldbus Box, 4-channel analog input, Interbus, temperature, RTD (Pt100), 16 bit, M12

MPN: IP3202-B400 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IP3202-B400 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IP3202-B400 now that it is discontinued?

Yes. Beckhoff has discontinued the IP3202-B400, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IP3202-B400 be shipped?

IP3202-B400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IP3202-B400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IP3202-B400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP3202-B400, subject to availability and destination.

The IP3202 analog input module allows resistance sensors to be connected directly. The module’s circuitry can operate the sensors using 2-, 3- or 4-wire connection techniques. Linearization over the full temperature range is realized with the aid of a

Beckhoff IP3202-B400 — Fieldbus Box, 4-channel analog input, Interbus, temperature, RTD (Pt100), 16 bit, M12. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of inputs	4
Input connections	M12, screw type
Connection method	screw type M12 for 2-, 3- and 4-wire connections, presetting: 4-wire
Sensor types	Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer)
Measuring range	-200…+850°C (Pt sensors); -60…+250°C (Ni sensors)
Resolution	0.1°C per digit
Measurement error/uncertainty	< ±1°C
Conversion time	approx. 250 ms, configurable up to 65 ms
Nominal voltage	24 V DC (-15%/+20%)
Measuring current	typ. 0.5 mA
Input filter	5 variations, configurable
Current consumption from U S (without sensor current)	see documentation
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	input: 4 x 16 bit data, optional: 4 x 8 bit control/status
Electrical isolation	channels/control voltage: 500 V, between the channels: no, control voltage/fieldbus: depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Configuration	via KS2000
Data transfer rates	500 kbaud
Bus interface	1 x M23 female socket 9-pin, 1 x M23 male socket 9-pin
Data transfer medium	LiYCY 3 x 2 x 0.22 mm²
Power supply	control voltage: 24 V DC (20…29 V DC); load voltage: according to I/O type
Box supply current	85 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Data transfer time	approx. 1 ms in the case of 10 modules for 32 bit input and output each
Weight	approx. 350 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
