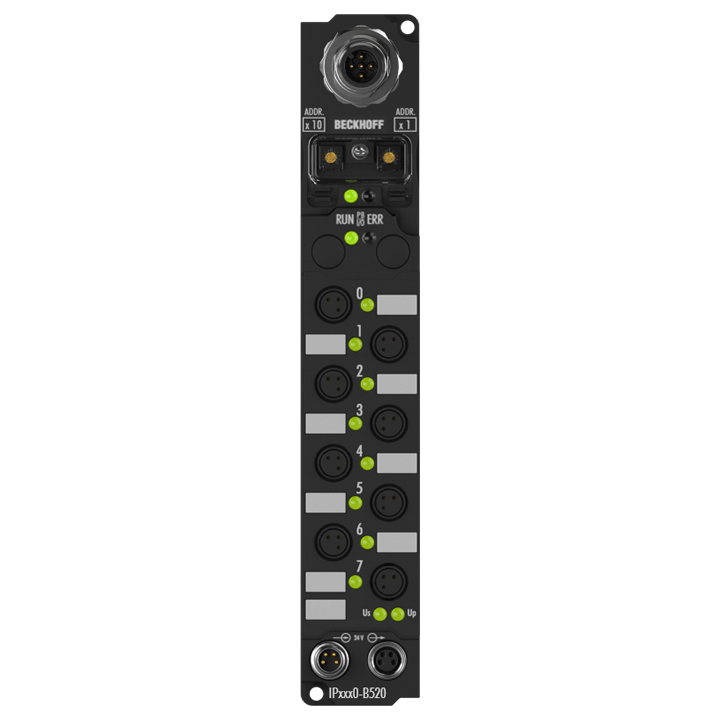

Beckhoff – IP2020-B520 Fieldbus Box, 8-channel digital output, DeviceNet®, 24 V DC, 2 A, Ø8

MPN: IP2020-B520 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IP2020-B520 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IP2020-B520 now that it is discontinued?

Yes. Beckhoff has discontinued the IP2020-B520, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IP2020-B520 be shipped?

IP2020-B520 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IP2020-B520 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IP2020-B520 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP2020-B520, subject to availability and destination.

The IP2020-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2 A each, although the total current is limited to 4 A. This makes these

Beckhoff IP2020-B520 — Fieldbus Box, 8-channel digital output, DeviceNet®, 24 V DC, 2 A, Ø8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of outputs	8
Output connections	8 mm, snap type
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2 A per channel, individually short-circuit proof, ∑ 4 A
Short-circuit current	max. 4 A
Auxiliary power current	typ. 30 mA per channel
Current consumption from U S (without sensor current)	see documentation
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	8 outputs
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Configuration	via KS2000 or the controller (explicit messaging)
Transmission rate	automatic detection up to 500 kbaud
Bus interface	1 x M12 plug, 5-pin
Transmission medium	shielded copper cable, with power supply, typ. 2 x 2 x 0.25 mm²
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	45 mA + current consumption of sensors, max. 0.5 A
Distance between stations	500 m 250 m 100 m
Operating modes	bit strobe, polling, cyclic, change of state (COS)
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
