Beckhoff IP1001-B520

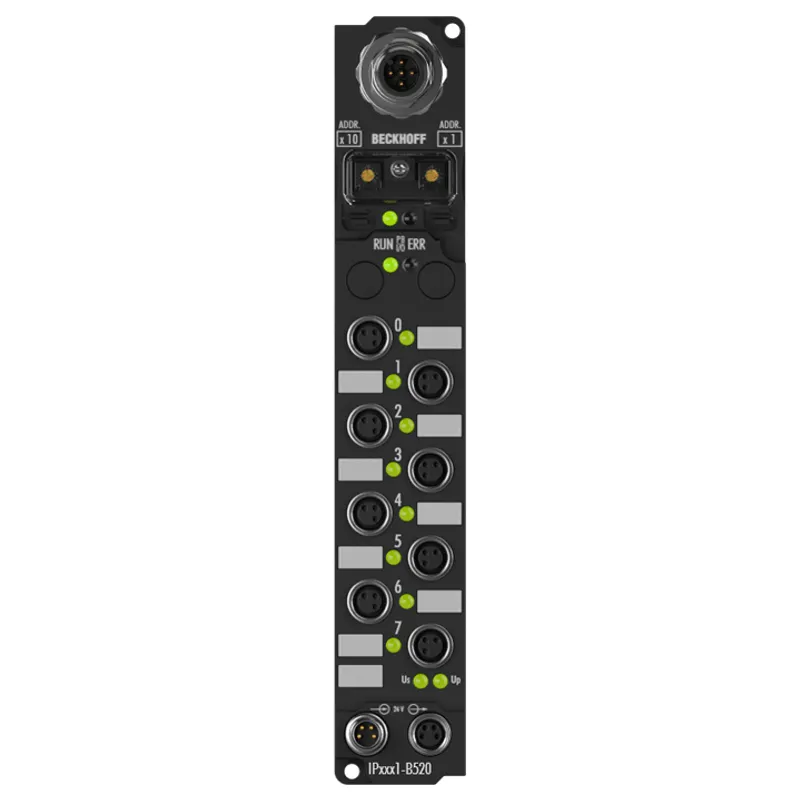

Fieldbus Box, 8-channel digital input, DeviceNet®, 24 V DC, 3 ms, M8

MPN: IP1001-B520
Category: IP1001-Bxxx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff IP1001-B520?

The IP1001-Bxxx digital input acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type

Specifications

Number of inputs	8
Input connections	M8, screw type
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	3.0 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 2)
“1” signal voltage	11…30 V (EN 61131-2, type 2)
Input current	typ. 6 mA (EN 61131-2, type 2)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	8 inputs
Current consumption from US (without sensor current)	see documentation
Electrical isolation	control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Configuration	via KS2000 or the controller (explicit messaging)
Data transfer rates	automatic detection up to 500 kbaud
Bus interface	1 x M12 plug, 5-pin
Data transfer medium	shielded copper cable, with power supply, typ. 2 x 2 x 0.25 mm²
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Distance between stations	500 m 250 m 100 m
Operating modes	bit strobe, polling, cyclic, change of state (COS)
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 175 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
