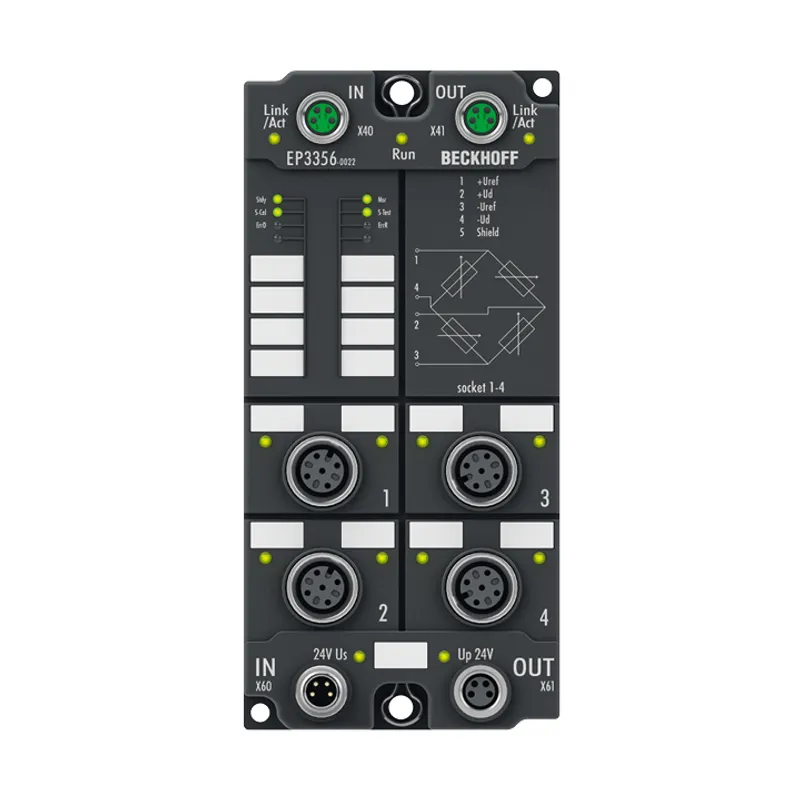

Beckhoff EP3356-0022
EtherCAT Box, 1-channel analog input, measuring bridge, full bridge, 24 bit, M12
- MPN
- EP3356-0022
- Category
- EP3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP3356-0022?
The EP3356-0022 EtherCAT Box enables direct connection of a resistor bridge or load cell in a 4-wire connection technology. The ratio between the bridge voltage UD and the supply voltage UREF is determined simultaneously in the input circuit and the
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 2, for 1 resistor bridge in full bridge technology |
| Input connections | M12 x 1, 5-pin, a-coded |
| Conversion time | 0.1…250 ms, configurable, max. 10,000 samples/s |
| Resolution | 24 bit, 32 bit presentation |
| Signal type | resistor bridge, strain gauge |
| Internal resistance | > 200 kΩ (UREF), > 1 MΩ (UD) |
| Measurement error/uncertainty | ±0.01% for the calculated load value in relation to the final load value with a 10 V feed and 20 mV bridge voltage (hence nominal strain gauge characteristic value of 2 mV/V), self-calibration active, 50 Hz filter active |
| Input filter limit frequency | 10 kHz low pass (-3 dB) |
| Conversion rate | 10,000…4 samples/s (0.1…250 ms conversion time) |
| Nominal voltage | 24 V (-15%/+20%) |
| Distributed clocks | yes |
| Sensor supply | 10 V (supplied from UP) |
| Current consumption from US | 120 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Supported nominal sensitivity | all, parameter resolution: 0.01 µV/V; recommended: 0.5…2.5 mV/V |
| Special features | self-calibration, quadruple averager, dynamic filters, fast data sampling, parallel connection |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
