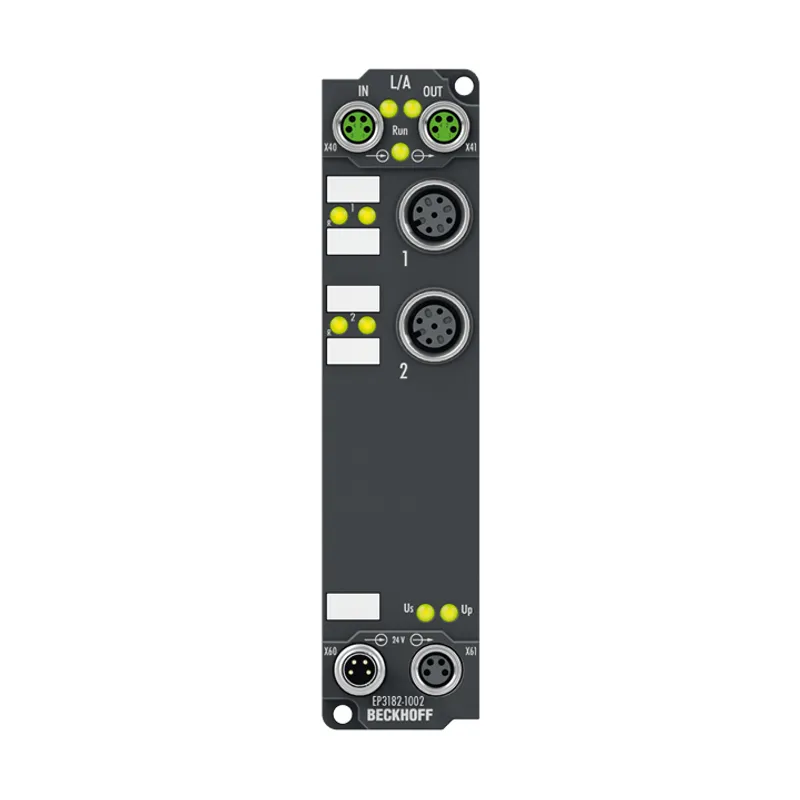

Beckhoff EP3182-1002
EtherCAT Box, 2-channel analog input + 2-channel digital output, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12
- MPN
- EP3182-1002
- Category
- EP3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP3182-1002?
The EP3182-1002 EtherCAT Box has two analog inputs which can be individually parameterized, so that they process signals either in the -10/0 to +10 V or the 0/4 to 20 mA range. The voltage or input current is digitized with a resolution of 16 bits, and
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 2 (single-ended) |
| Number of outputs | 2 (digital 24 V DC) |
| Connection method | M12 socket, 5-pin, a-coded |
| Conversion time | ~ 100 µs |
| Resolution | 16 bit (incl. sign) |
| Signal type | -10/0…+10 V | 0/4…20 mA, parameterizable per channel |
| Common-mode voltage UCM | max. 35 V |
| Internal resistance | > 200 kΩ | typ. 85 Ω + diode voltage |
| Measurement error/uncertainty | ±0.3% (relative to full scale value) |
| Input filter limit frequency | 5 kHz |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Input filter | configurable |
| Max. output current | 2 mA (short-circuit proof) per channel |
| Sensor supply | from load supply voltage UP |
| Current consumption from US | 120 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | control voltage/fieldbus: yes |
| Special features | current or voltage parameterizable, 2 digital outputs (sink/source type) |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
EP3182-1002: frequently asked questions
When can EP3182-1002 be shipped?
EP3182-1002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EP3182-1002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EP3182-1002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EP3182-1002, subject to availability and destination.
