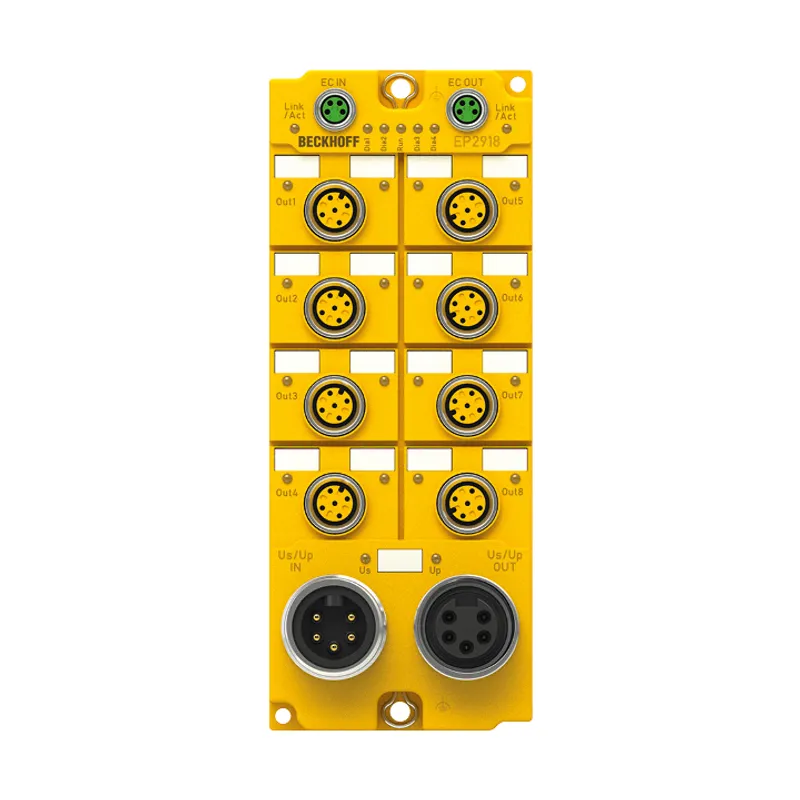

Beckhoff EP2918-0032
EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, TwinSAFE, TwinSAFE Logic
- MPN
- EP2918-0032
- Category
- EP2xxx | Digital output
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP2918-0032?
The EP2918-0032 TwinSAFE component provides safe digital outputs in a module with IP67 protection (eight outputs for 24 V DC actuators up to 2 A). The signals are connected via M12 screw connectors. The outputs are controlled by a TwinSAFE Logic-capable
Specifications
Specifications
| Protocol | TwinSAFE/Safety over EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Connection technology | M12 socket x 1, 5-pin, a-coded |
| Specification | link unit between safe input and output signals |
| Number of outputs | 8 |
| Max. output current | 2 A |
| Cycle time | approx. 1 ms/according to project size |
| Response time | typ. 4 ms |
| Fault response time | ≤ watchdog time (parameterizable) |
| Current consumption from US/UP | max. 120 mA/max. 70 mA |
| Power supply connection | feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin |
| Installation position | variable |
| Weight | approx. 470 g |
| Protection rating | IP67 (according to EN 60529) |
| Safety standard | EN ISO 13849-1:2015 (Cat 4, PL e) and EN 61508:2010 (SIL 1-3) |
| Dimensions (W x H x D) | 60 mm x 150 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
