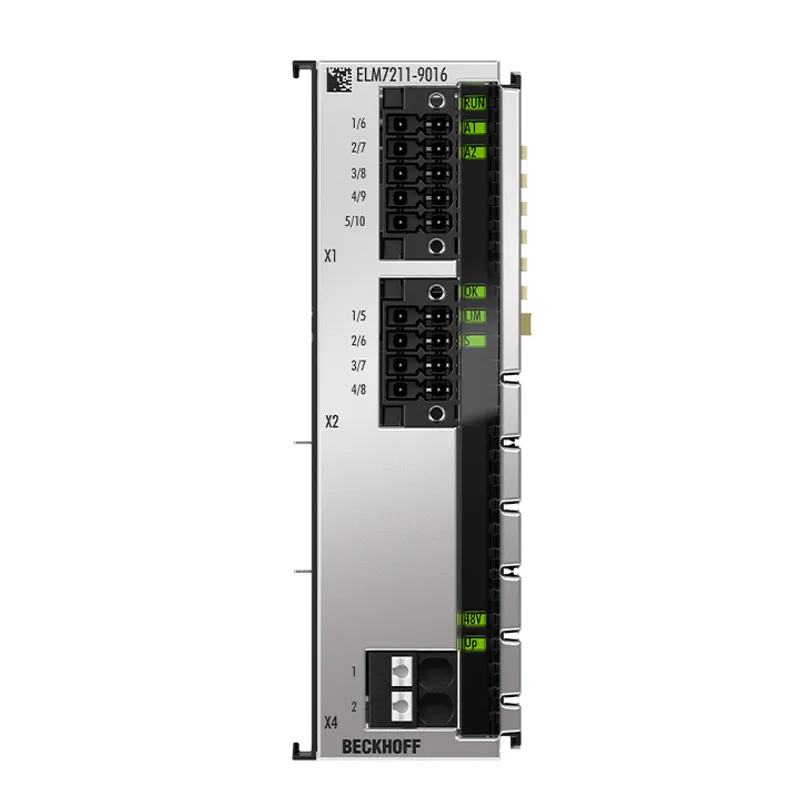

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, TwinSAFE Logic
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL/ELM7xxx | Compact drive technology |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ELM7211-9016 be shipped?
ELM7211-9016 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ELM7211-9016 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ELM7211-9016 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ELM7211-9016, subject to availability and destination.
The ELM72xx-9016 servomotor EtherCAT Terminal with integrated absolute value interface offers high servo performance in a very compact design. The fast control technology, based on field-oriented current and PI speed control, supports fast and highly
Specifications
Specifications
| Technology | compact drive technology |
| Function | servo drive in IP20 for one drive axis |
| Load type | permanent magnet-excited three-phase synchronous motor |
| Number of channels | 1 |
| Number of inputs | 2 x digital input, 1 x feedback |
| Connection technology | direct motor connection with OCT |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Supply voltage power | 8…48 V DC (external) |
| Output current (rms) | 4.5 A |
| Peak current (rms) | max. 9.0 A for 1 s |
| PWM clock frequency | 16 kHz |
| Current controller frequency | 32 kHz |
| Rated speed controller frequency | 16 kHz |
| Rotating field frequency | 0…599 Hz |
| Output voltage motor brake | 24 V DC |
| Output current | max. 0.5 A |
| Power loss | typ. 5 W |
| Current consumption power contacts | typ. 100 mA + holding current motor brake |
| Current consumption E-bus | 120 mA |
| Distributed clocks | yes |
| Special features | compact (30 mm wide), absolute feedback, One Cable Technology (OCT), STO via FSoE |
| Realization STO | initiated by TwinSAFE Logic via FSoE |
| Safe stop functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Fault response time | ≤ watchdog time (parameterizable) |
| Electrical isolation | 500 V (E-bus/field potential) |
| Weight | approx. 390 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL, TÜV SÜD |
| Design form | metal housing with signal LEDs |
| Material | zinc die-cast |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Wiring | specific push-in connection |
| Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
