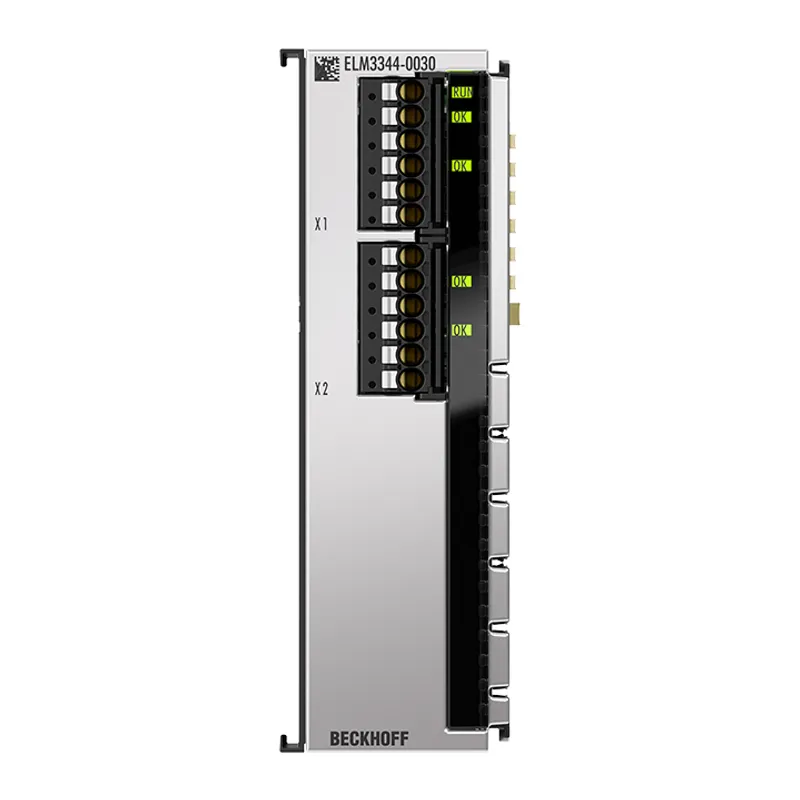

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, externally calibrated
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL3xxx | Analog input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ELM3344-0030 be shipped?
ELM3344-0030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ELM3344-0030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ELM3344-0030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ELM3344-0030, subject to availability and destination.
The 4- and 8-channel EtherCAT Terminals from the ELM334x economy series are designed for temperature measurement with thermocouples. All common thermocouple types are covered and, with a sampling rate of 1 ksps per channel, fast processes are also easy
Specifications
Specifications
| Voltage measurement | ±20/40/80/320 mV (2-wire connection) |
| Temperature measurement (thermocouple) | type A1, A2, A3, B, C, D, E, G, J, K, L, N, P, R, S, T, U and others; internal/external cold junction measurement (2-wire connection) |
| Number of channels | 4 |
| Technology | temperature or voltage measurement, configurable for each channel |
| Signal type | differential |
| Connection technology | 2-wire |
| Connection type | push-in, service plug 6-pin |
| Max. sampling rate | max. 1 ms/1 ksps (per channel, multiplex) |
| Oversampling factor | n = 1…20 selectable |
| Internal resistance | > 4 MΩ |
| Measurement error/uncertainty | depending on TC type, see documentation, e.g. type K: ±0.7°C at 23°C and ±1.1°C at 0…55°C with internal cold spot |
| Temperature coefficient | depending on TC type, see documentation, e.g. type K: 15 mK/K |
| Calibration certificate (analog) | externally calibrated |
| Connection diagnostics | broken wire/short circuit |
| Functional diagnostics | yes |
| Distributed clocks | yes, accuracy 1 µs |
| Resolution | 24 bit (incl. sign), adjustable: 0.1/0.01/0.001°C |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | 707 V DC (type test) |
| Electrical isolation | Channel/SGND | 707 V DC (type test) |
| Current consumption E-bus | typ. 220 mA |
| Current consumption power contacts | – |
| Weight | approx. 350 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Thermal dissipation | typ. 2 W |
| Special features | AGND led out, common mode measurement, free numeric filter, TrueRMS, integrator/differentiator, non-linear scaling, PeakHold |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | metal housing with signal LEDs |
| Material | zinc die-cast |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | – |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.2…1.5 mm², st*: 0.2…1.5 mm², f*: 0.25…0.75 mm² |
| Connection cross-section AWG | s*: AWG24…14, st*: AWG24…14, f*: AWG24…14 |
| Stripping length | 8…9 mm |
| Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
