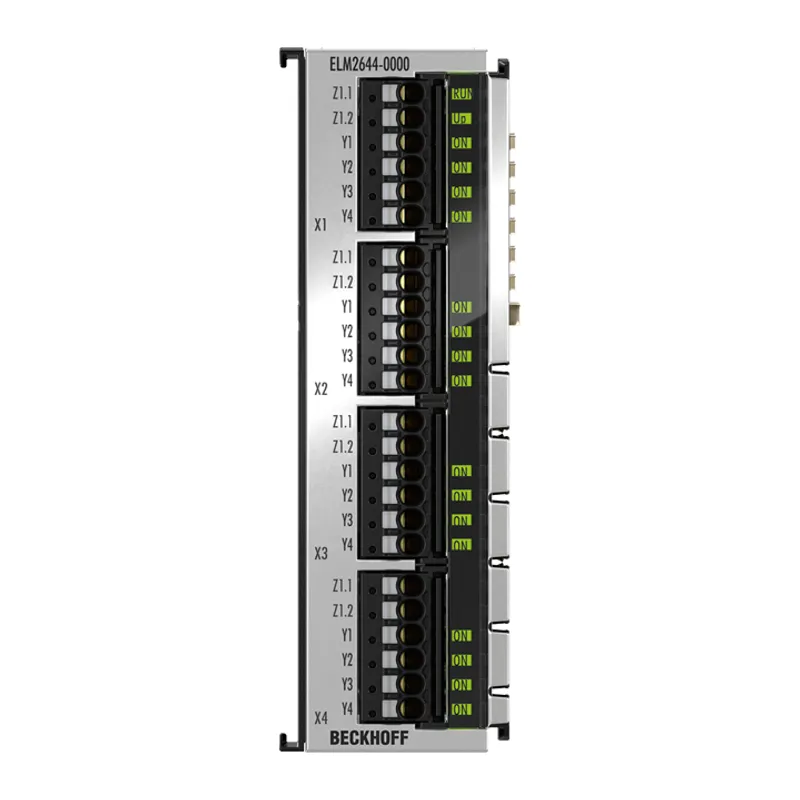

EtherCAT Terminal, 4-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL2xxx | Digital output |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ELM2644-0000 be shipped?
ELM2644-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ELM2644-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ELM2644-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ELM2644-0000, subject to availability and destination.
With the EL/ELM264x (Reed) and ELM274x (Solid-State) Beckhoff is considerably extending the usage possibilities of the integrated measurement technology of the ELM3xxx series as well as the normal EL3xxx/EL4xxx analog inputs and outputs, because several
Specifications
Specifications
| Technology | multiplexer |
| Connection technology | 2-wire reed output |
| Connection type | push-in, service plug 6-pin |
| Number of channels | 4 |
| Number of outputs | 4 x multiplexer 1 on 4 |
| Nominal voltage | 48 V AC/DC |
| Load type | ohmic |
| Distributed clocks | – |
| Ohmic switching current | 0.5 A AC/DC per channel |
| Inductive switching current | no data |
| Switching capacity | max. 10 W |
| Continuous power | max. 10 W |
| Current consumption E-bus | typ. 60 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption power contacts | typ. 30 mA |
| Configuration | no address or configuration setting |
| On-resistance | typ. 0.2 Ω |
| Switching on speed | typ. 1 ms, max. 5 ms |
| Switching off speed | typ. 1 ms, max. 5 ms |
| Breakdown voltage | 170 V |
| Short-circuit current | not short-circuit proof, see peak current |
| Thermal dissipation | typ. 2 W |
| Special features | fast reed relay |
| Weight | approx. 350 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
| Design form | metal housing with signal LEDs |
| Material | zinc die-cast |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | – |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.2…1.5 mm², st*: 0.2…1.5 mm², f*: 0.25…0.75 mm² |
| Connection cross-section AWG | s*: AWG24…14, st*: AWG24…14, f*: AWG24…14 |
| Stripping length | 8…9 mm |
| Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
