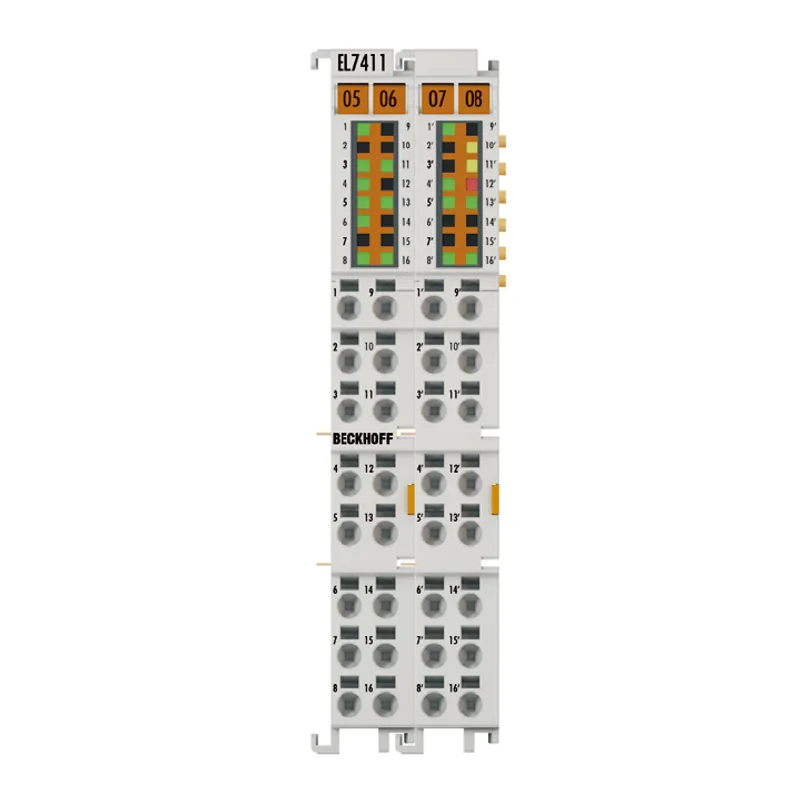

Beckhoff EL7411

EtherCAT Terminal, 1-channel motion interface, BLDC motor, 48 V DC, 4.5 A, with incremental encoder

MPN: EL7411
Category: EL/ELM7xxx | Compact drive technology

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL7411?

The EL7411 BLDC motor terminal provides high control performance in a very compact design for the medium output range of BLDC motors. Due to the fast control technology and the connection of an incremental encoder, both very high speed profiles and

Specifications

Technology	compact drive technology
Connection method	direct motor connection + feedback
Number of inputs	2 x end position, 1 x encoder, 1 x fan diag, 3 x Hall effect sensor
Load type	BLDC
Number of channels	1
Number of outputs	1 x BLDC motor, 1 x motor brake, 1 x fan supply, 1 x fan mode, 1 x sensor supply, 1 x encoder supply
Supply voltage electronics	24 V DC (via power contacts)
Supply voltage power	8…48 V DC (external)
Output current (rms)	4.5 A
Peak current (rms)	max. 9.0 A for 1 s
Performance increase	yes, through ZB8610 fan cartridge
Output current with ZB8610 (rms)	7.0 A up to 55°C, 8.0 A up to 45°C operating temperature
Peak current with ZB8610 (rms)	max. 16.0 A for 1 s up to 55°C operating temperature
Rotating field frequency	0…599 Hz
PWM clock frequency	16 kHz
Current controller frequency	32 kHz
Min. motor inductance	200 µH
Output voltage motor brake	24 V DC
Output current motor brake	max. 0.5 A
Current consumption power contacts	typ. 50 mA + holding current motor brake
Current consumption E-bus	typ. 190 mA
Distributed clocks	yes
Special features	compact and system-integrated
Electrical isolation	500 V (E-bus/field potential)
Weight	approx. 95 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG28…16, st: AWG22…16, f*: AWG26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	24 mm x 100 mm x 68 mm
