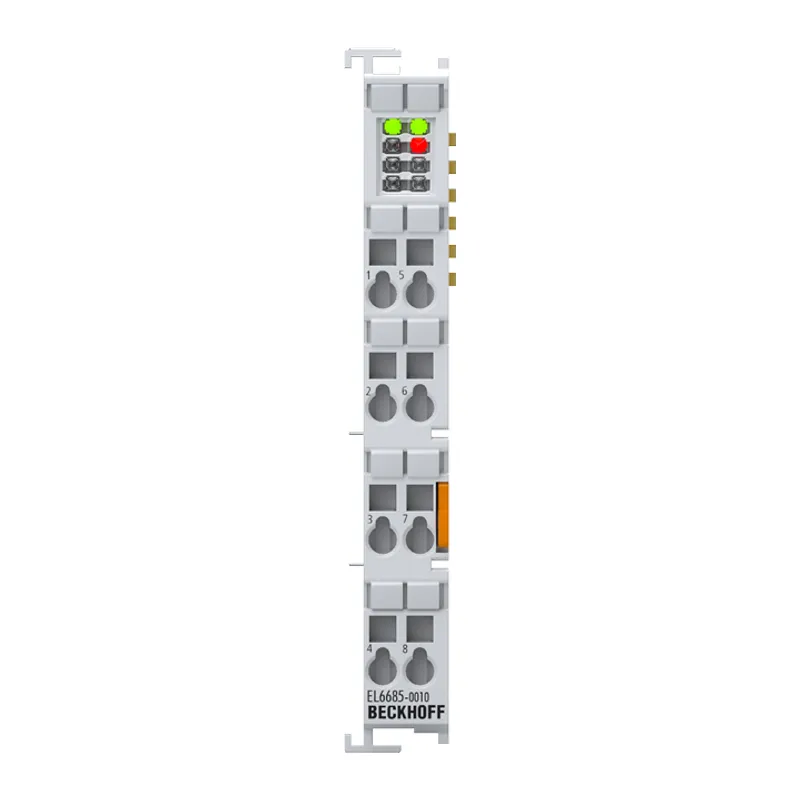

Beckhoff EL6685-0010
EtherCAT Terminal, reference clock, high-precision, trimmable, distributed clocks
- MPN
- EL6685-0010
- Category
- EL6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EL6685-0010?
The EL6685-0010 serves as a high-precision reference clock for the distributed clocks system. For applications with the highest demands on time measurement, the built-in oscillator significantly increases the basic accuracy of the timer. The EL6685-0010
Specifications
Specifications
| Technology | reference oscillator |
| Specification | basic oscillator accuracy ±0.5 ppm (±500 ppb) |
| Distributed clocks | yes |
| Current consumption power contacts | typ. 50 mA |
| Special features | adjustable oscillator for hold-over function in the absence of external synchronization (e.g. via EL6689 GNSS or EL6688 PTP) |
| Weight | approx. 50 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
