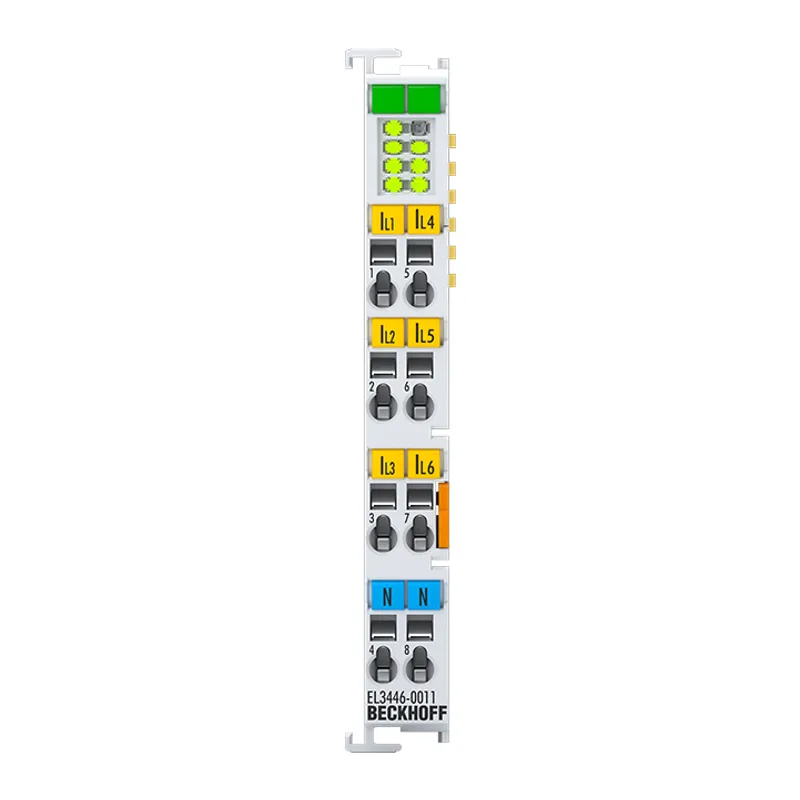

EL3443-0013EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 333 mV, 24 bit
Beckhoff EL3446-0011
EtherCAT Terminal, 6-channel analog input, current, 0,1 A, 24 bit, distributed power measurement
- MPN
- EL3446-0011
- Category
- EL3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff EL3446-0011?
The EL3446-0011 EtherCAT Terminal enables measurement of all relevant electrical data in the supply grid and performs simple pre-evaluations. Since the EL3446-0011 itself has no voltage inputs, the measured voltage values are transmitted via EtherCAT
Specifications
Specifications
| Number of inputs | 6 x current |
| Oversampling factor | – |
| Distributed clocks | optional (necessary for distributed power measurement) |
| Update interval | 100 ms |
| Measured values | current (and with the EL3443: voltage, effective, reactive and apparent power, active, reactive and apparent energy, cos φ, frequency, THD, harmonic (up to 40th harmonic)) |
| Measuring voltage | – |
| Measuring current | max. 100 mA (AC/DC) |
| Measurement error/uncertainty | 0.3% relative to full scale value (I), 0.6% calculated value (see documentation) |
| Update time | net-synchronous |
| Monitoring function | undercurrents/overcurrents (adjustable) |
| Electrical isolation | 2500 V |
| Current consumption E-bus | typ. 120 mA |
| Current consumption power contacts | – |
| Special features | In combination with an EL3443, the EL3446 allows the measurement of real power values (for apparent, reactive and active power) via distributed power measurement. |
| Weight | approx. 75 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Approvals/markings | CE, UL |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
No matching specifications
EL3446-0011: frequently asked questions
When can EL3446-0011 be shipped?
EL3446-0011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL3446-0011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL3446-0011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL3446-0011, subject to availability and destination.
