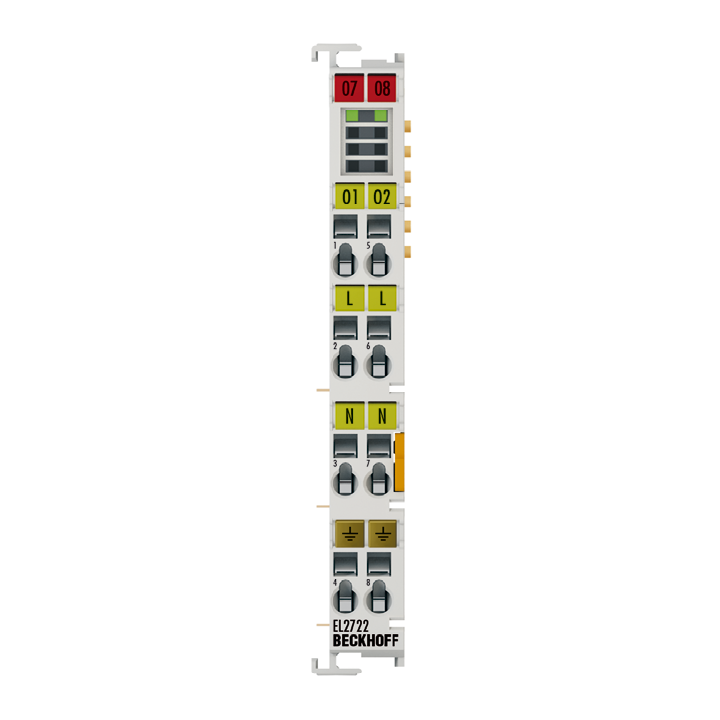

Beckhoff EL2722

EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A

MPN: EL2722
Category: EL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL2722?

The EL2722 output terminal uses a power switch to control mains voltage from 12 V to 230 V AC. The switching element is a triac, which is connected to the power contact potential. As a semiconductor switch, it is not subject to wear. The steady load

Specifications

Connection technology	triac output, 2-wire
Number of outputs	2 x make contacts, mutually locked
Rated load voltage	12…230 V AC
Load type	ohmic, inductive
Distributed clocks	–
Max. output current	1 A (leakage current: typ. 0.8 mA, max. 1.5 mA) per channel
Switching times	in zero crossing, 0.1…10 ms
Rotating field frequency	47…63 Hz
Surge voltage protection	> 275 V
Peak current	40 A (16 ms), 1.5 A (30 s)
Standby current	0.6 mA
Leakage current (OFF state)	typ. 0.8 mA, max. 1.5 mA
Switch-on time	0.1…10 ms, zero crossing
Switch-off time	T/2
Residual voltage	max. 1.5 V (60 mA…1 A), 150 Ω ( 60 mA)
Current consumption E-bus	typ. 120 mA
Current consumption power contacts	–
Bit width in the process image	2 outputs
Configuration	no address or configuration setting
Electrical isolation	500 V (E-bus/field voltage), 3750 V AC (1 min.)
Special features	suitable for conventional blind motors
Weight	approx. 55 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
