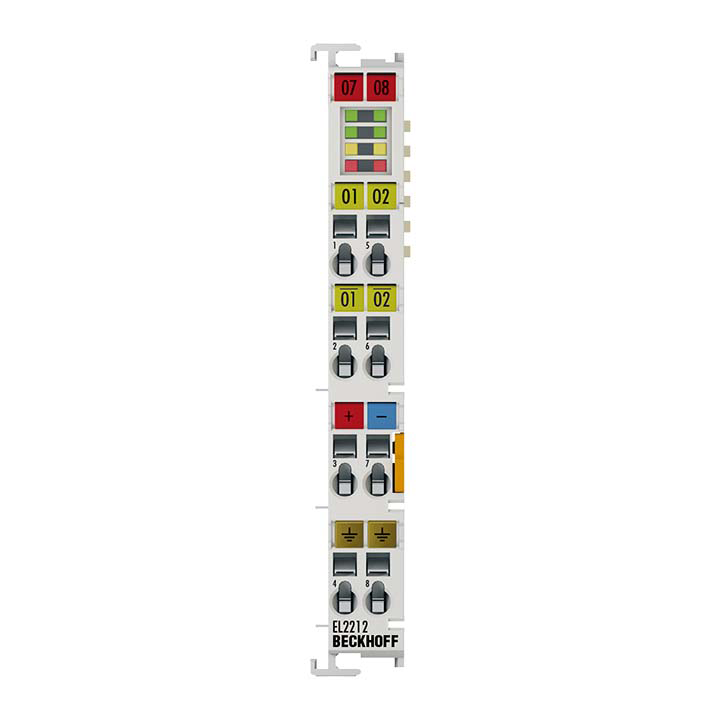

Beckhoff EL2212

EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp

MPN: EL2212
Category: EL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL2212?

The EL2212 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical isolation. The multi-timestamp features allow each EtherCAT cycle to capture as many events per

Specifications

Connection technology	4-wire
Number of outputs	2
Nominal voltage	24…72 V DC (-15%/+0%)
Load type	inductive > 1 mH
Precision of timestamp in the terminal	10 ns
Resolution timestamp	1 ns
Distributed clocks	yes
Distributed clock precision	1 µs
Max. output current	peak current: max. 10 A per channel, holding current: 0.2…2.5 A per channel
Output stage	full bridge (push-pull)
Short-circuit current	typ. 12 A
Reverse voltage protection	–
Switching times	without distributed clocks: typ. TON/TOFF 20 µs, with distributed clocks: typ. TON/TOFF 1 µs via internal compensation
Current consumption E-bus	typ. 120 mA
Current consumption power contacts	load-dependent
Configuration	via TwinCAT System Manager
Electrical isolation	500 V (E-bus/field potential)
Special features	Multi-timestamping, current-controlled outputs can be connected in high-resistance mode.
Weight	approx. 50 g
Operating temperature	-25…+55°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
