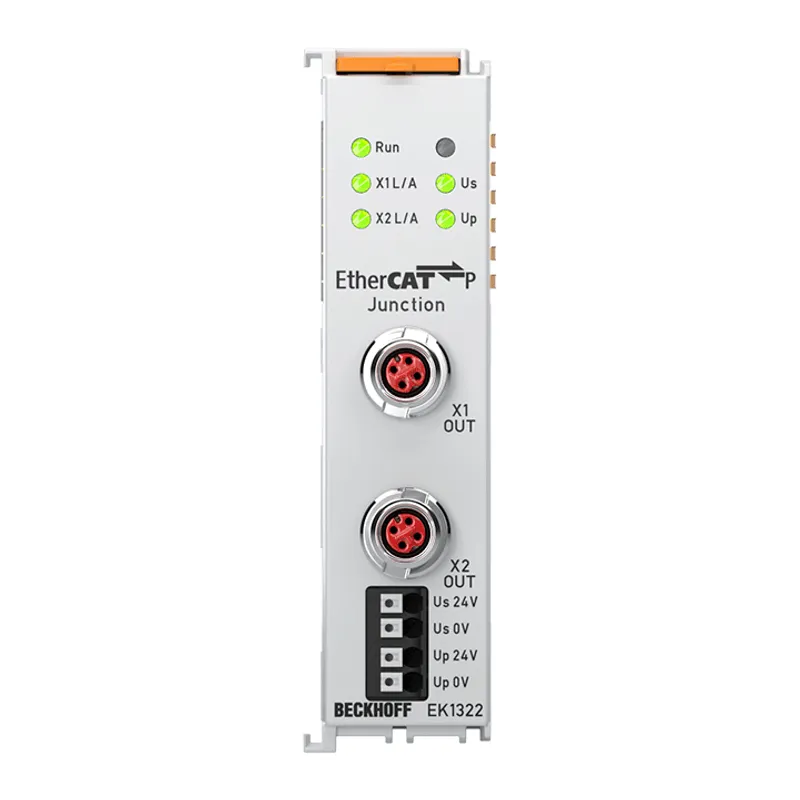

Beckhoff EK1322

2-port EtherCAT P junction with feed-in

MPN: EK1322
Category: EK1xxx, BK1xx0 | EtherCAT Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EK1322?

The EK1322 2-port EtherCAT P junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT P star topologies. A modular EtherCAT P star hub can be realized by using

Specifications

Task within EtherCAT system	coupling of EtherCAT P junctions
Data transfer medium	EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks
Bus interface	2 x M8 socket, P-coded, shielded
Power supply	external feed-in: 24 V DC (-15 %/+20 %) for US and UP
Sum current	max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US	typ. 3 mA
Current consumption from UP	typ. 3 mA
Current consumption E-bus	200 mA
Operating temperature	-25…+55°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	depending on module
Connection cross-section	s: 0.2…1.5 mm², st: 0.2…1.5 mm², f*: 0.25…0.75 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG28…14
Stripping length	8…9 mm
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm without connector
