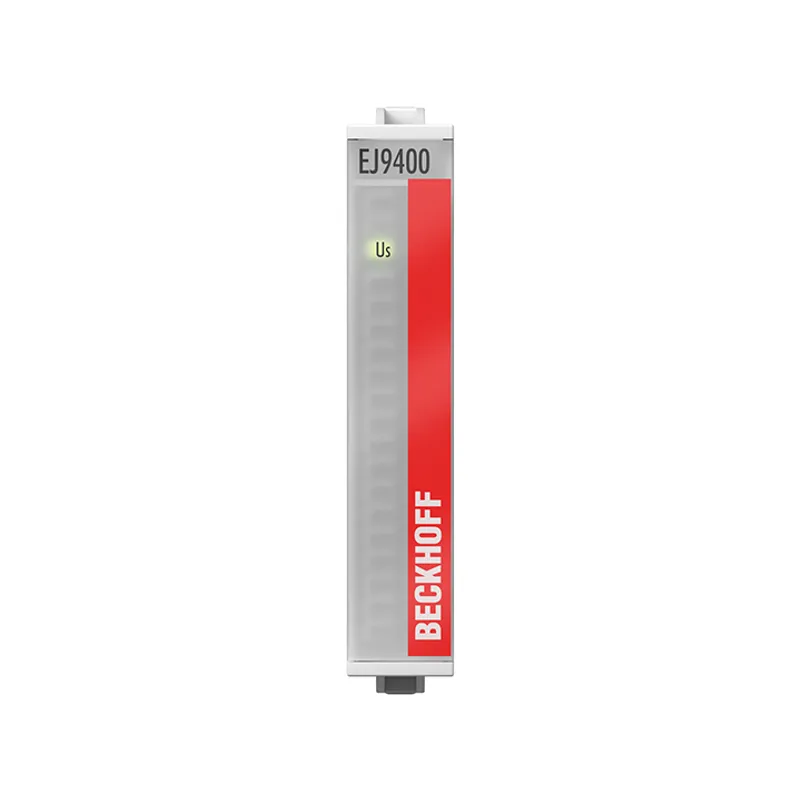

Beckhoff EJ9400

EtherCAT plug-in module, power supply for E-bus, 24 V DC, 2.5 A

MPN: EJ9400
Category: EJ9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EJ9400?

The EJ9400 EtherCAT plug-in module is used in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between the coupler and the module over the E-bus. Each EtherCAT plug-in module draws a certain amount of

Specifications

Technology	power supply module for E-bus
Short-circuit proof	–
Input voltage	24 V DC (-15%/+20%)
Input current	approx. 10 mA + (E-bus/6.25)
Max. output current	2.5 A
Current consumption E-bus	–
Current consumption from US	10 mA + (∑ E-bus current/7.2)
Electrical isolation	–
Diagnostics in the process image	–
Weight	approx. 30 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL
Design form	EtherCAT I/O plug-in module
Material	polycarbonate
Installation	on signal distribution board
Mechanical coding	EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board
Position of the coding pins	7, 8
Locking	latching lug in circuit board cut-out
Connection method	field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip
Dimensions (W x H x D)	12 mm x 66 mm x 55 mm
