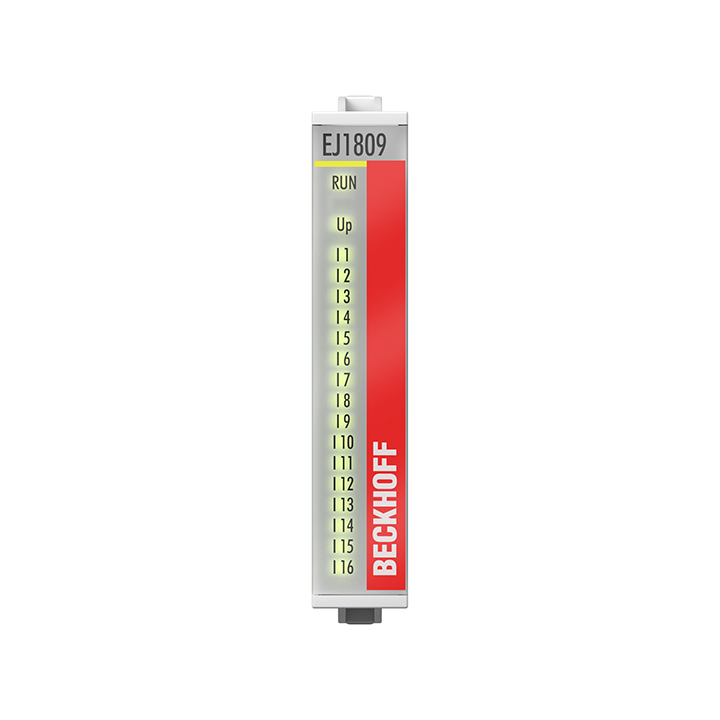

Beckhoff EJ1809

EtherCAT plug-in module, 16-channel digital input, 24 V DC, 3 ms

MPN: EJ1809
Category: EJ1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EJ1809?

The EJ1809 EtherCAT plug-in module acquires binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The module contains 16 channels, whose signal state is indicated by

Specifications

Specification	EN 61131-2, type 1/3
Number of inputs	16
Nominal voltage	24 V DC (-15%/+20%)
“0” signal voltage	-3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Input filter	typ. 3.0 ms
Distributed clocks	–
Current consumption E-bus	typ. 80 mA
Electrical isolation	500 V (E-bus/field potential)
Special features	standard input module with high number of channels (filter 3 ms)
Weight	approx. 30 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL
Design form	EtherCAT I/O plug-in module
Material	polycarbonate
Installation	on signal distribution board
Mechanical coding	EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board
Position of the coding pins	1, 3
Locking	latching lug in circuit board cut-out
Connection method	field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip
Dimensions (W x H x D)	12 mm x 66 mm x 55 mm
