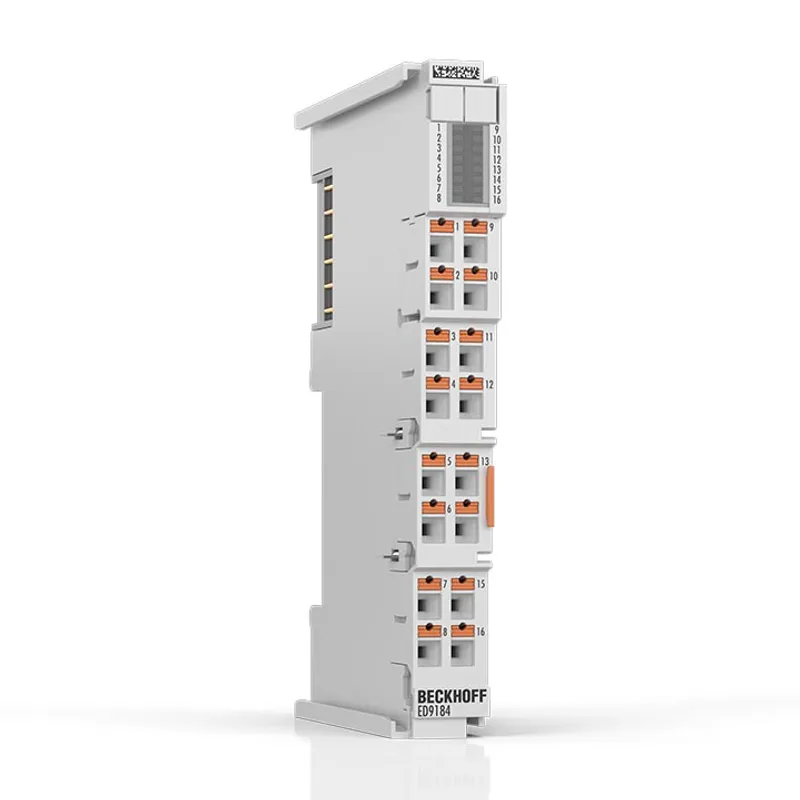

Beckhoff ED9184

EtherCAT Terminal, potential distribution, 8 x 24 V DC, 8 x 0 V DC, push-in

MPN: ED9184
Category: EL/ED9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ED9184?

The ED9184 potential distribution terminal provides the supply voltage via the front-side terminal contacts. 24 V DC and 0 V DC can each be tapped 8x from the front. The power contacts are connected to the front-side terminal contacts and are looped

Specifications

Internal communication protocol	no (passive)
Function	potenial distribution, 8 x 2 potentials from the power contacts
Output voltage	from the power contacts
Diagnostics	no
Distributed clocks	no
Timestamp	no
Oversampling	no
Power contacts \| Input voltage	max. 60 V
Power contacts \| Current carrying capacity	max. 10 A
Power contacts \| Current consumption	load-dependent
Power contacts \| Output voltage	corresponds to Power contacts \| Input voltage
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Installation position	variable
Vibration resistance	conforms to EN 60068-2-6
Shock resistance	conforms to EN 60068-2-27
EMC immunity	conforms to EN 61000-6-2
EMC emission	conforms to EN 61000-6-4
Markings	CE
Approvals	UL (in preparation)
Weight	60 g
Protection rating	IP20
Material	polycarbonate
Dimesnions \| Width (single)	15 mm
Dimensions \| Width (lined up)	12 mm
Dimensions \| Height	100 mm
Dimensions \| Depth	65 mm
Installation \| Terminal/back wall	DIN rail, 35 mm (EN 60715)
Installation \| Terminal/terminal	double slot and key connection
Plug-in wiring level	no
Connection technology	push-in
Connection cross-section \| Solid wire	0.08…1.5 mm²
Connection cross-section \| Stranded wire	0.25…1.5 mm²
Connection cross-section \| With ferrule	0.14…0.75 mm²
Connection cross-section AWG \| Solid wire	AWG28…16
Connection cross-section AWG \| Stranded wire	AWG22…16
Connection cross-section AWG \| With ferrule	AWG26…19
Stripping length	8…9 mm
Power contact \| "+" (left)	yes
Power contact \| "+" (rechts)	yes
Power contact \| "-" (left)	yes
Power contact \| "-" (right)	yes
Power contact \| "⏚" (left)	no
Power contact \| "⏚" (right)	no
Insertion lock for power contact “⏚”	yes
