ED3074EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

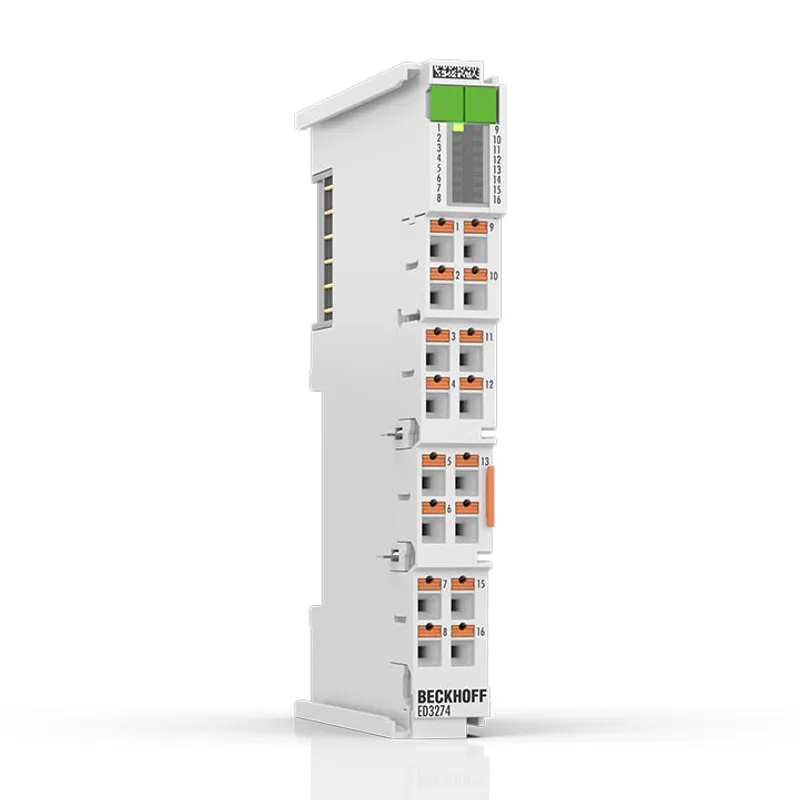

Beckhoff ED3274
EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in
- MPN
- ED3274
- Category
- EL/ED3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff ED3274?
The ED3274 analog input terminal enables the measurement of temperatures with resistance thermometers (RTD) or thermocouples (TC) on four channels. Each channel can be configured individually, allowing for mixed operation of RTD and TC. The measured
Specifications
Specifications
| Number of channels | Total | 4 |
| Internal communication protocol | EtherCAT |
| Number of channels | max. 4 |
| Sensor types | type B, C, E, J, K, L, N, R, S, T, U |
| Connection technology | push-in |
| Resolution | Technical | 16 bit |
| Resolution | Process data | 0.01°C |
| Display | Process data | REAL32, INT16 |
| ADC conversion method | delta-sigma |
| Conversion type | simultaneous |
| Conversion time | 10 ms |
| Conversion rate | 100 sps |
| Ground reference | differential |
| Signal range | Technical | -100….+100 mV |
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply voltage | via E-bus, via power contacts |
| Power contacts | Input voltage | 24 V DC (-15%/+20%) |
| Power contacts | Current carrying capacity | max. 10 A DC |
| Power contacts | Current consumption | typ. 40 mA |
| Power contacts | Output voltage | corresponds to Power contacts | Input voltage |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Installation position | variable |
| Vibration resistance | conforms to EN 60068-2-6 |
| Shock resistance | conforms to EN 60068-2-27 |
| EMC immunity | conforms to EN 61000-6-2 |
| EMC emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (single) | 15 mm |
| Dimensions | Width (lined up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/back wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/terminal | double slot and key connection |
| Plug-in wiring level | no |
| Connection cross-section | Solid wire | 0.08…1.5 mm² |
| Connection cross-section | Stranded wire | 0.25…1.5 mm² |
| Connection cross-section | With ferrule | 0.14…0.75 mm² |
| Connection cross-section AWG | Solid wire | AWG28…16 |
| Connection cross-section AWG | Stranded wire | AWG22…16 |
| Connection cross-section AWG | With ferrule | AWG26…19 |
| Stripping length | 8…9 mm |
| Power contact | "+" (left) | yes |
| Power contact | "+" (rechts) | yes |
| Power contact | "-" (left) | yes |
| Power contact | "-" (right) | yes |
| Power contact | "⏚" (left) | no |
| Power contact | "⏚" (right) | no |
| Insertion lock for power contact “⏚” | yes |
ED3274: frequently asked questions
When can ED3274 be shipped?
ED3274 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ED3274 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ED3274 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ED3274, subject to availability and destination.
