Beckhoff EC1110

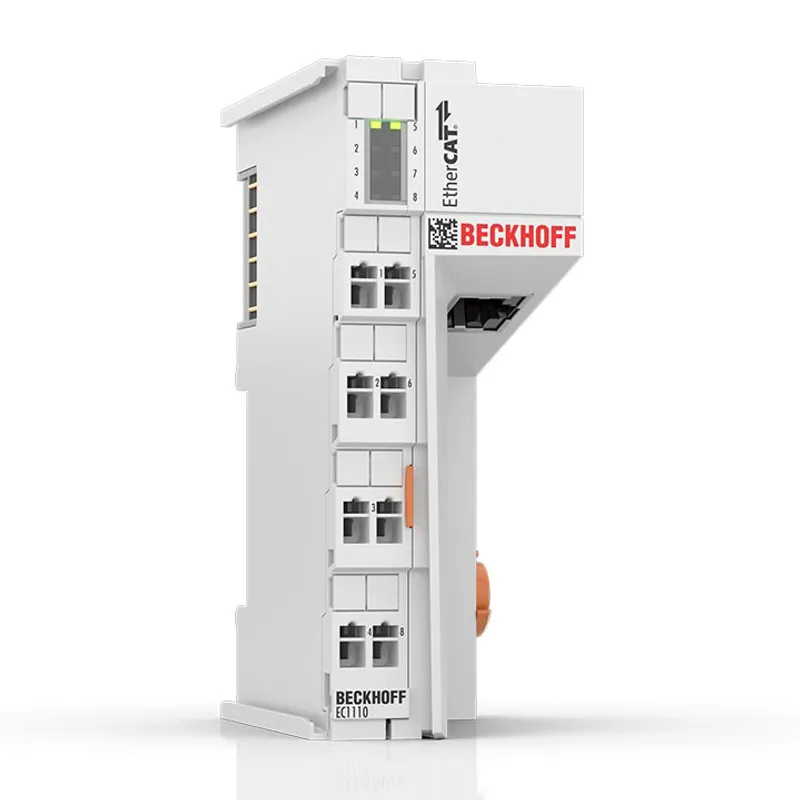

EtherCAT Terminal extension, RJ45, angled, push-in

MPN: EC1110
Category: EK/EC1xxx, BK1xx0 | EtherCAT Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EC1110?

The EC1110 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending the EtherCAT network in the form of a line topology. Due to the angled RJ45 socket, the cable can

Specifications

Internal communication protocol	EtherCAT
Number of ports	1
Function	Conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network
Protocol	EtherCAT
Transmission type	half or full duplex
Data transfer medium	Ethernet/EtherCAT cable (at least Cat.5), shielded
Transmission rate	100 Mbit/s
Delay	typ. 1 µs
Cable length \| Point-to-point	max. 100 m
Connection technology	RJ45
Connection technology \| Contact type	socket
Distributed clocks	no
Timestamp	no
Oversampling	no
Electronics \| Supply voltage	via E-bus
E-bus \| Current consumption	typ. 130 mA
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Installation position	variable
Vibration resistance	conforms to EN 60068-2-6
Shock resistance	conforms to EN 60068-2-27
EMC immunity	conforms to EN 61000-6-2
EMC emission	conforms to EN 61000-6-4
Markings	CE
Approvals	UL (in preparation)
Protection rating	IP20
Material	polycarbonate
Dimesnions \| Width (single)	42 mm
Dimensions \| Width (lined up)	39 mm
Dimensions \| Height	100 mm
Dimensions \| Depth	65 mm
Installation \| Terminal/back wall	DIN rail, 35 mm (EN 60715)
Installation \| Terminal/terminal	double slot and key connection
Power contact \| "+" (left)	no
Power contact \| "-" (left)	no
Power contact \| "⏚" (left)	no
