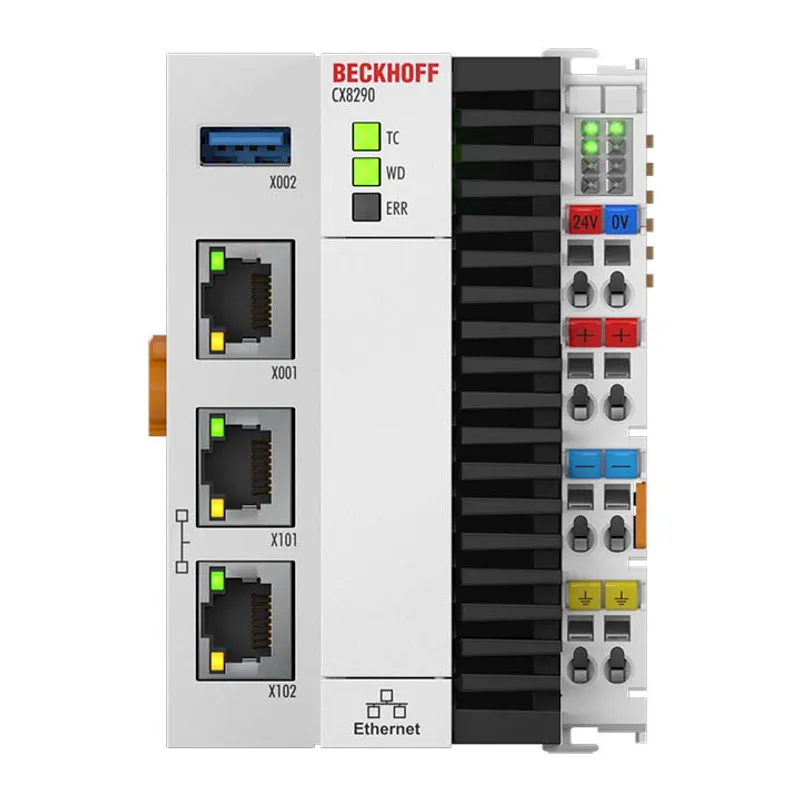

Beckhoff CX8290

Embedded PC with Arm® Cortex®-A53 and 2-port Ethernet switch

MPN: CX8290
Category: CX8200 | Arm® Cortex®-A53

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CX8290?

The CX8290 Embedded PC is a controller with a second, switched Ethernet port. Protocols such as real-time Ethernet, ADS UDP/TCP, and EAP (EtherCAT Automation Protocol) are supported, and additional real-time protocols such as PROFINET, EtherNet/IP™, and

Specifications

Processor	Arm® Cortex®-A53, 1.2 GHz
Number of cores	2
Flash memory	slot for microSD card, card not included (requires a microSD card with a minimum capacity of 16 GB)
Main memory	1 GB LPDDR4 RAM (not expandable)
1-second UPS	integrated (1 MB on microSD card)
Interfaces	1 x RJ45 10/100/1000 Mbit/s, 1 x USB 3.0, 1 x bus interface
Cooling	passive
Bus interface	2 x Ethernet RJ45 (switched, 10/100/1000 Mbit/s), optionally PROFINET (TF627x), EtherNet/IP™ (TF628x), BACnet/IP (TF8020)
Diagnostics LED	1 x TC status, 1 x WD, 1 x error
Clock	internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days)
Operating system	Beckhoff RT Linux®
Control software	TwinCAT 3 runtime (XAR) from TwinCAT 3.1 Build 4026 (XAE)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%)
UPS OCT-capable	no
Current supply E-bus/K-bus	2 A
Max. power consumption	4 W
Max. power consumption (with loading UPS)	7.5 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Dimensions (W x H x D)	71 mm x 100 mm x 73 mm
Weight	approx. 220 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	Economy (20); please see here for an overview of all the TwinCAT 3 platform level
