Beckhoff CX8180

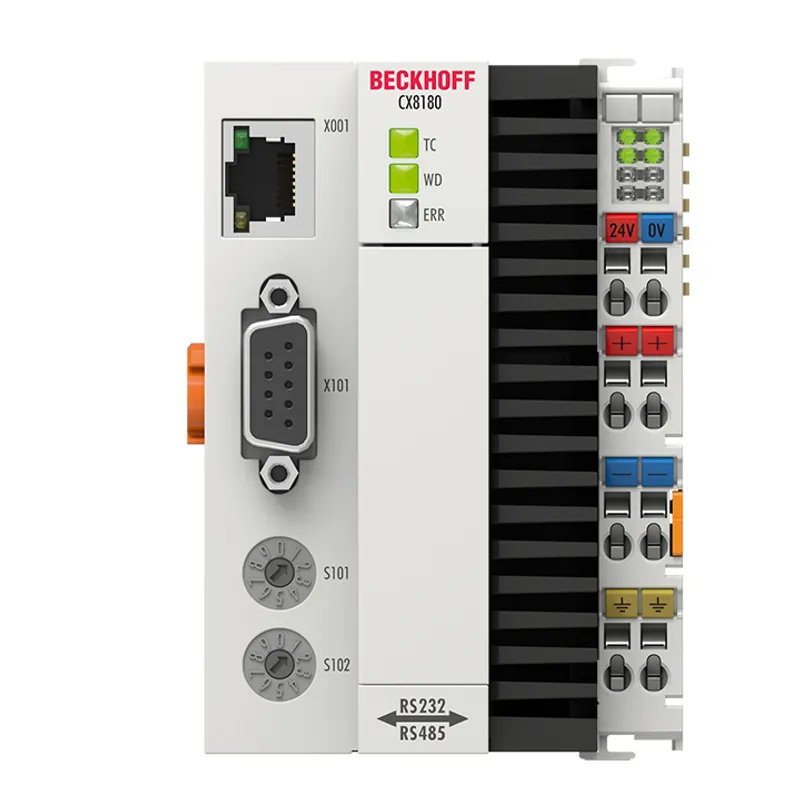

Embedded PC with Arm® Cortex®-A9 and RS232/RS485

MPN: CX8180
Category: CX8100 | Arm® Cortex®-A9

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CX8180?

The CX8180 has two serial interfaces: one with RS232 and one with RS485 physics. Both serial interfaces are on the D-sub socket. They are not bound to a particular protocol and can be used with the appropriate TwinCAT 3 functions for different serial

Specifications

Processor	Arm® Cortex®-A9, 800 MHz
Number of cores	1
Flash memory	slot for microSD card, 512 MB included (optionally expandable)
Main memory	512 MB DDR3 RAM (not expandable)
1-second UPS	integrated (1 MB on microSD card)
Interfaces	1 x RJ45 10/100 Mbit/s, 1 x bus interface
Cooling	passive
Bus interface	D-sub socket, 9-pin, 1 x RS232, 1 x RS485
Data transfer rates	300 baud…115 kbaud
Diagnostics LED	1 x TC status, 1 x WD, 1 x error
Clock	internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
Operating system	Windows Embedded Compact 7
Control software	TwinCAT 3 runtime (XAR)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%)
UPS OCT-capable	no
Current supply E-bus/K-bus	2 A
Max. power consumption	4 W
Max. power consumption (with loading UPS)	9 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Dimensions (W x H x D)	71 mm x 100 mm x 73 mm
Weight	approx. 230 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	Economy (20); please see here for an overview of all the TwinCAT 3 platform level
