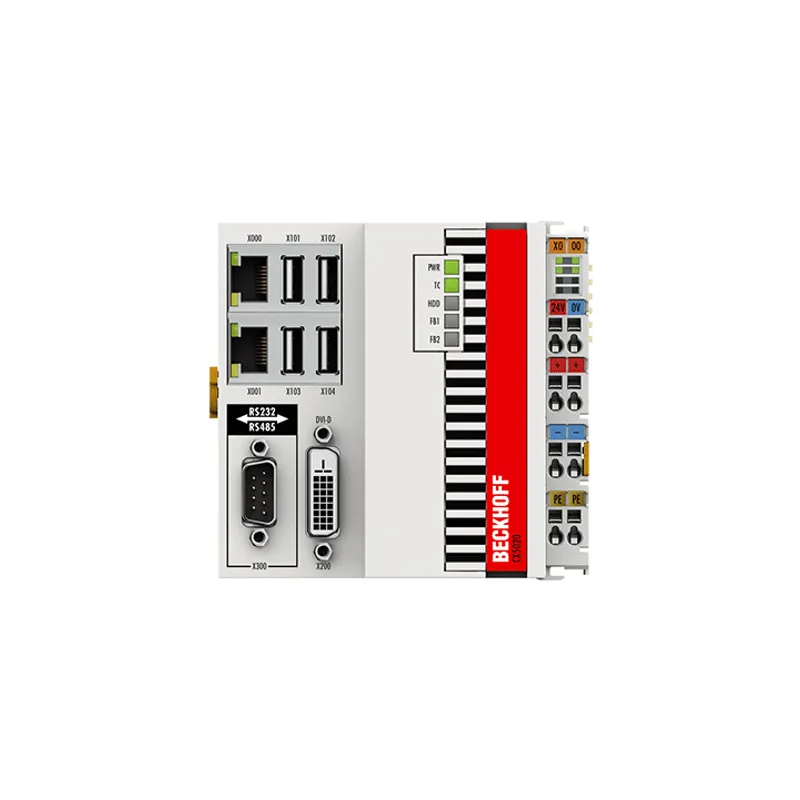

Beckhoff – CX5020-1115 CPU module, K-bus, Microsoft Windows Embedded CE 6.0, TwinCAT 3 runtime (XAR), no licenses included

MPN: CX5020-1115 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original CX5020-1115 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IPC service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the CX5020-1115 now that it is discontinued?

Yes. Beckhoff has discontinued the CX5020-1115, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CX5020-1115 be shipped?

CX5020-1115 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX5020-1115 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX5020-1115 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX5020-1115, subject to availability and destination.

The CX5010 and CX5020 are Embedded PCs from the CX5000 series based on Intel Atom® processors and differ only by the CPU version. The CX5010 has a 1.1 GHz Intel Atom® Z510 processor, while the CX5020 has a 1.6 GHz Intel Atom® Z530 processor. Apart from

Beckhoff CX5020-1115 — CPU module, K-bus, Microsoft Windows Embedded CE 6.0, TwinCAT 3 runtime (XAR), no licenses included. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Product family	CX5020 – Embedded PC with Intel Atom®
Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Processor	Intel Atom ® Z530, 1.6 GHz clock frequency
Number of cores	1
Flash memory	slot for CompactFlash ® card, 128 MB included (expandable)
Main memory	512 MB RAM (expandable ex factory to 1 GB)
1-second UPS	integrated (1 MB on CompactFlash ® card)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
Cooling	passive
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows Embedded CE 6, Windows Embedded Standard 2009
Control software	TwinCAT 2 runtime TwinCAT 3 runtime (XAR)
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%)
Current supply E-bus/K-bus	2 A
Max. power consumption	13 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Weight	approx. 575 g
Dimensions (W x H x D)	106 mm x 100 mm x 92 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL, with CX1900-0105 ordering option: ATEX
Ex marking	II 3 G Ex nA IIC T4 Gc
TwinCAT 3 platform level	Performance (40); please see here for an overview of all the TwinCAT 3 platform level
