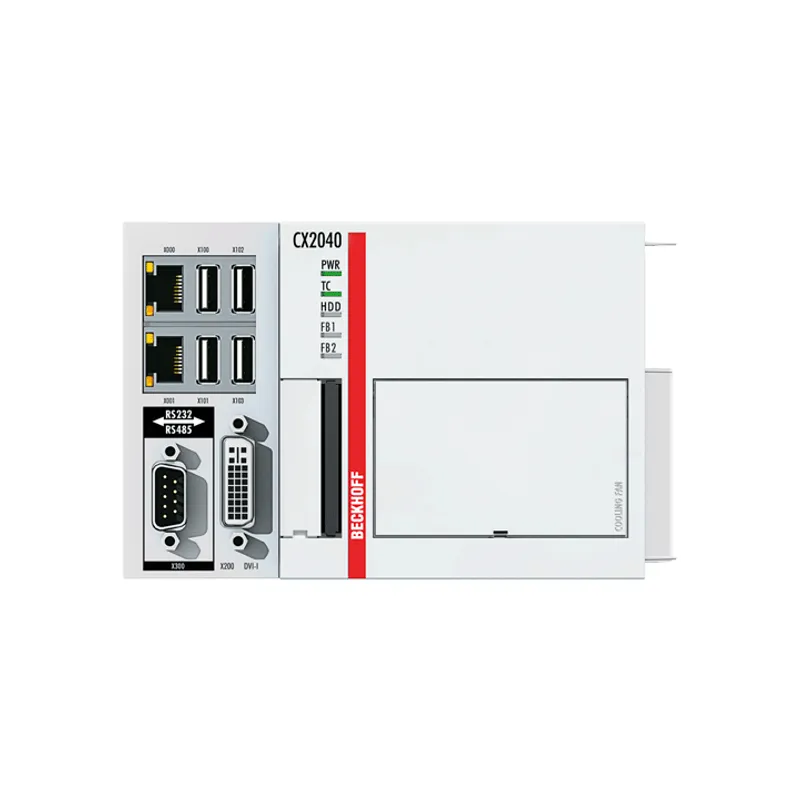

Beckhoff – CX2040-0111 CPU module, Microsoft Windows Embedded Compact 7, TwinCAT 2 PLC runtime

Name: Beckhoff – CX2040-0111 CPU module, Microsoft Windows Embedded Compact 7, TwinCAT 2 PLC runtime
Brand: Beckhoff
SKU: CX2040-0111

MPN: CX2040-0111 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original CX2040-0111 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IPC service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the CX2040-0111 now that it is discontinued?

Yes. Beckhoff has discontinued the CX2040-0111, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CX2040-0111 be shipped?

CX2040-0111 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX2040-0111 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX2040-0111 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2040-0111, subject to availability and destination.

The CX2040 has a 2.1 GHz Intel® Core™ i7 quad-core CPU. Due to its high power the CPU is equipped with a fan with ball bearings and speed monitoring. In addition to the CPU and chipset the CX2040 also contains the main memory with 4 GB RAM as standard.

Beckhoff CX2040-0111 — CPU module, Microsoft Windows Embedded Compact 7, TwinCAT 2 PLC runtime. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Product family	CX2040 – Basic CPU module
Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Processor	Intel ® Core™ i7 2715QE 2.1 GHz
Number of cores	4
Flash memory	20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable
Main memory	4 GB DDR3 RAM (not expandable)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
Cooling	integrated fan with ball bearings and speed monitoring
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows Embedded Compact 7 (TwinCAT 3 supports only one CPU core), Windows Embedded Standard 7, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD
Control software	TwinCAT 2 runtime TwinCAT 3 runtime (XAR)
I/O connection	via power supply module (E-bus or K-bus, automatic recognition)
Power supply	24 V DC (-15%/+20%)
NOVRAM	128 kB
Max. power consumption	32 W
Weight	approx. 1230 g
Dimensions (W x H x D)	144 mm x 99 mm x 91 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	High Performance (70); please see here for an overview of all the TwinCAT 3 platform level
