Beckhoff – CX1010-0112 CPU module, DVI/USB, Microsoft Windows Embedded CE 6.0, TwinCAT 2 NC PTP runtime

MPN: CX1010-0112 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original CX1010-0112 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IPC service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the CX1010-0112 now that it is discontinued?

Yes. Beckhoff has discontinued the CX1010-0112, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CX1010-0112 be shipped?

CX1010-0112 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX1010-0112 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX1010-0112 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX1010-0112, subject to availability and destination.

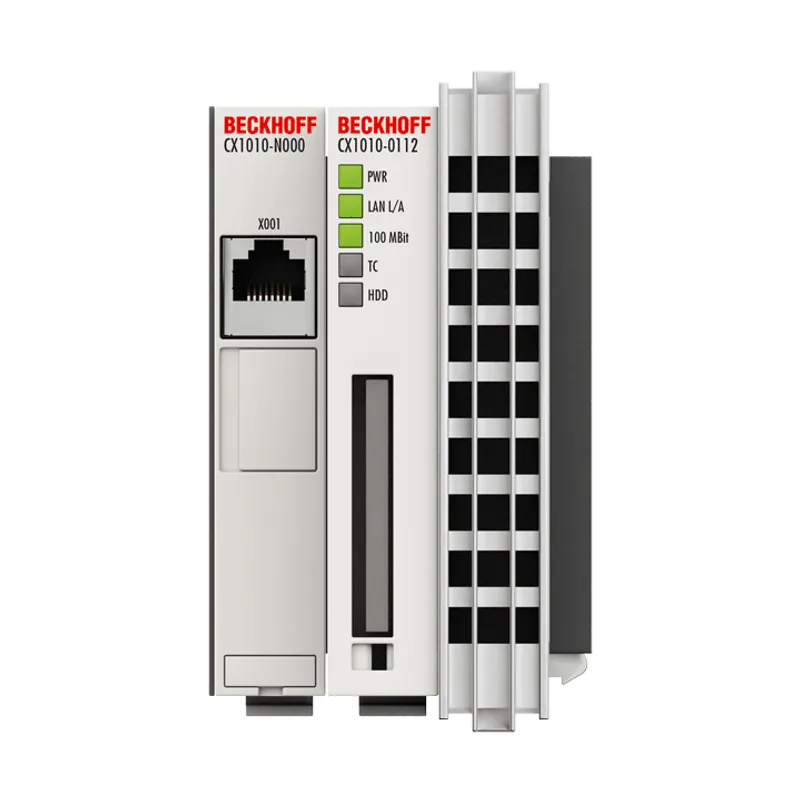

The CX1010 CPU module is the basic module of the CX system. It comprises the CPU and the internal flash memory in two implementation levels and offers the option to operate an additional memory medium in CompactFlash® format II. An Ethernet interface is

Beckhoff CX1010-0112 — CPU module, DVI/USB, Microsoft Windows Embedded CE 6.0, TwinCAT 2 NC PTP runtime. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Product family	CX1010 – Basic CPU module
Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Processor	compatible with Intel ® Pentium ® MMX, clock frequency 500 MHz
Number of cores	1
Flash memory	slot for CompactFlash ® card, 128 MB included (expandable), expansion slot: 1 x CompactFlash ® type II insert with ejector
Main memory	256 MB DDR RAM (not expandable)
Interfaces	1 x RJ45 10/100 Mbit/s
Cooling	passive
Diagnostics LED	1 x power, 1 x LAN speed, 1 x LAN activity, TC status, 1 x flash access
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows Embedded CE 6, Windows Embedded Standard 2009
Control software	TwinCAT 2 PLC runtime or TwinCAT 2 NC PTP runtime
System bus	16 bit ISA (PC/104)
I/O connection	via power supply module (E-bus, K-bus, K-bus/IP-Link)
Power supply	via system bus (through CX1100-xxxx power supply modules)
Max. power consumption	8 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Weight	approx. 355 g
Dimensions (W x H x D)	58 mm x 120 mm x 91 mm
Relative humidity	95%, no condensation
Operating temperature	0…50°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
