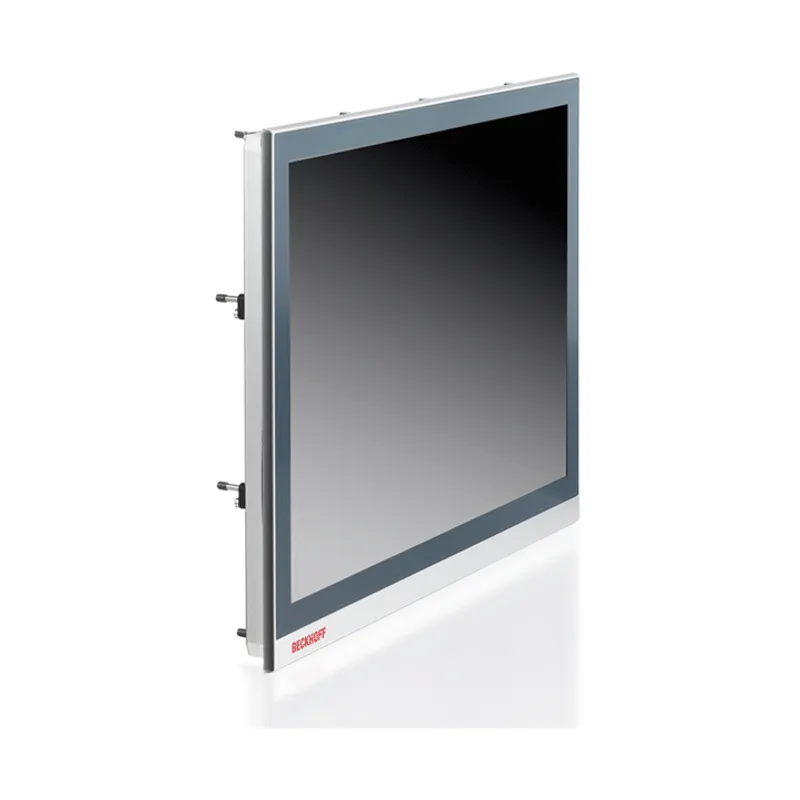

Panel PC with Arm® Cortex®-A8
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP26xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP26xx-0000 be shipped?
CP26xx-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP26xx-0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP26xx-0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP26xx-0000, subject to availability and destination.
The CP26xx built-in Panel PC series is characterized by a modern operating concept with dual-touch display as well as an advanced, elegant device design. It is designed for installation in the front of a control cabinet. The CP26xx combine reliable
Specifications
Specifications
| Device type | Multi-touch built-in Panel PC |
| Housing | aluminum housing with glass front |
| Slots for hard disk/flash | 1 slot for microSD |
| Protection rating | front side IP65, rear side IP20 |
| Operating temperature | 0…55°C |
| Display size/resolution | 7" 800 x 480, 12" 800 x 600, 12.1" 1280 x 800, 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Processor | Arm® Cortex®-A8, 1 GHz (TC2, TC3: 30) |
| Motherboard | 3½-inch motherboard |
| Memory | 1 GB DDR3 RAM |
| Graphic | integrated in the processor |
| Ethernet | 1 x 10/100BASE-T on-board |
| EtherCAT | 1 x on-board |
| Hard disks/flash | 512 MB microSD card |
| NOVRAM | 128 kB |
| Interfaces | 2 x USB 2.0, 1 x RS232 |
| Power supply | 24 V DC |
| Operating system | Windows Embedded Compact 7, English |
