Beckhoff C7015-0020

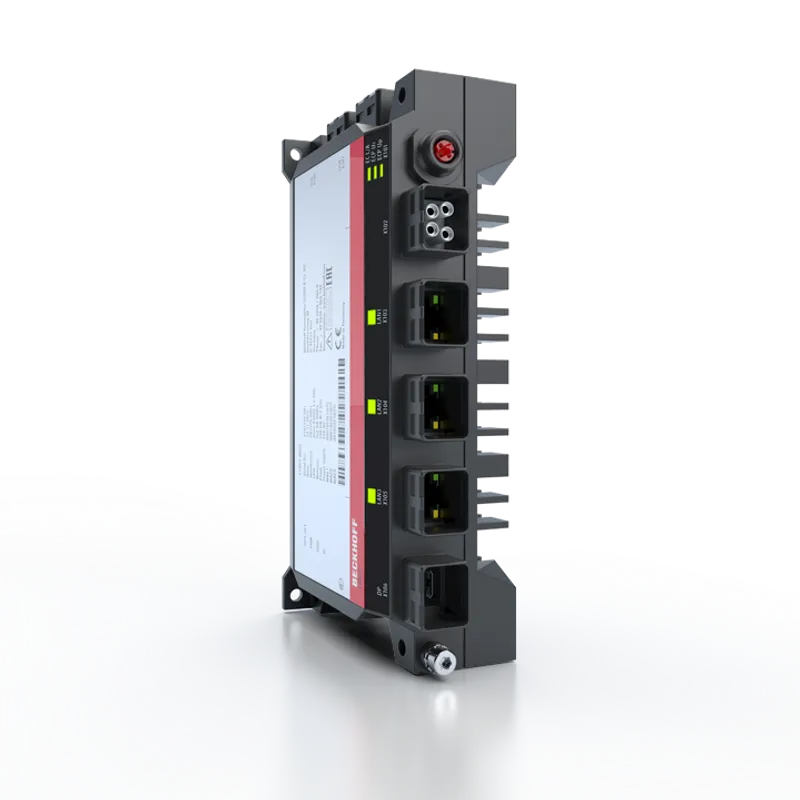

Ultra-compact Industrial PC in IP65

MPN: C7015-0020
Category: C7015

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff C7015-0020?

Multi-core capability directly at the machine Following the current trend, this space-saving IP65 Industrial PC hardware with flexible mounting options is ideally suited for implementing advanced Industrie 4.0 solutions. A wide variety of on-board

Specifications

Device type	Ultra-compact IP65 Industrial PC
Housing	aluminum zinc die-cast housing
Installation	mounting sheet integrated at the rear wall and side wall
Slots for hard disk/flash	1 slot for M.2 SSD
Cooling	passive with single side cooling plate
Free space for air circulation	5 cm (2") on top and bottom of the PC required
Protection rating	IP65, in completely connected condition
Operating temperature	0…50°C
Dimensions (W x H x D)	85 x 167 x 43 mm (3.3" x 6.6" x 1.7")
Processor	Intel Atom® x5-E3930, 1.3 GHz, 2 cores (TC3: 40)
Motherboard	compact motherboard for Intel Atom® x5-E39xx
Memory	4 GB DDR4 RAM
Graphic	integrated in the processor
Ethernet	3 x 100/1000BASE-T on-board push-pull
Hard disks/flash	40 GB M.2 SSD
Interfaces	1 x mini DisplayPort push-pull, 1 x EtherCAT P signal output, 2 x USB 3.0 push-pull
Power supply	24 V DC (power supply plug needs to be ordered separately)
Operating system	–
