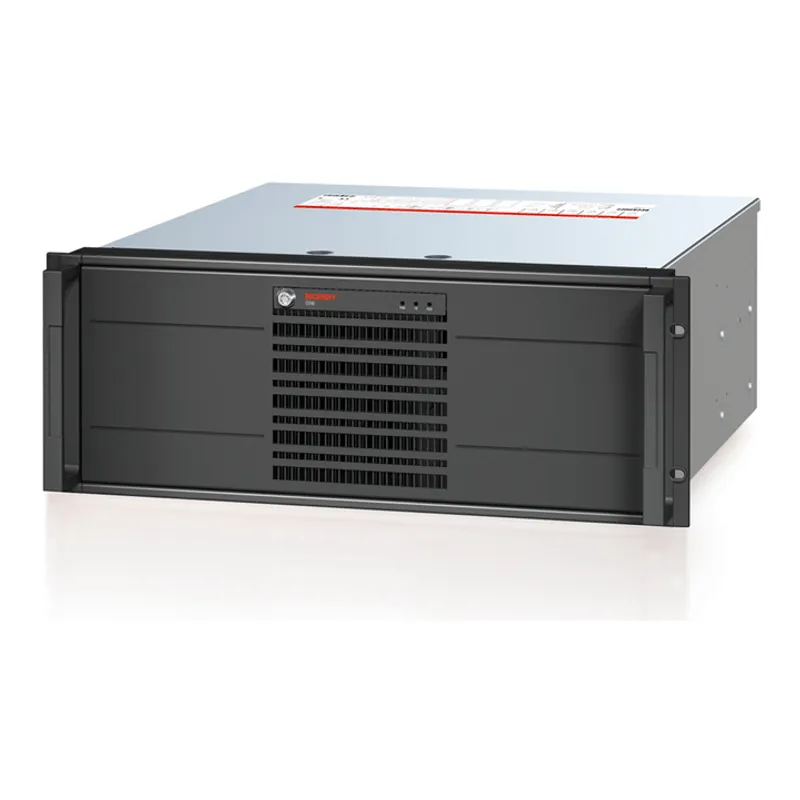

19-inch slide-in Industrial PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | C5240 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can C5240-0020 be shipped?
C5240-0020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C5240-0020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C5240-0020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C5240-0020, subject to availability and destination.
The C5xxx Industrial PCs series is designed for 19-inch slide-in installation. They are equipped with maximum performance class components and are ideally suited for machine construction and plant engineering applications, for example with the TwinCAT
Specifications
Specifications
| Device type | 19-inch slide-in Industrial PC |
| Housing | stainless steel based housing, 4 high units, with lockable front flap |
| 5¼-inch slots | 3 |
| Front flap | lockable, includes 2 x USB 2.0, reset key and ATX key, 5¼-inch slots |
| Protection rating | front side IP50, rear side IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 17 kg (37.5 lbs) |
| Dimensions (W x H x D) | 482 x 177 x 511 mm (19" x 7" x 20.1"), depth behind front 469 mm (18.5") |
| Processor | Intel® Celeron® G4900 3.1 GHz, 2 cores (TC3: 50) |
| Motherboard | ATX motherboard for 8th/9th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7 |
| PCIe®/PCI™ slots | 2 x PCIe® x1, 2 x PCIe® x4, 1 x PCIe® x16, 2 x PCI™ for full-length plug-in cards |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB |
| Disk drive | – |
| Interfaces | 4 x USB 3.1 Gen. 1, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse |
| Power supply | 100…240 V AC |
| Operating system | – |
