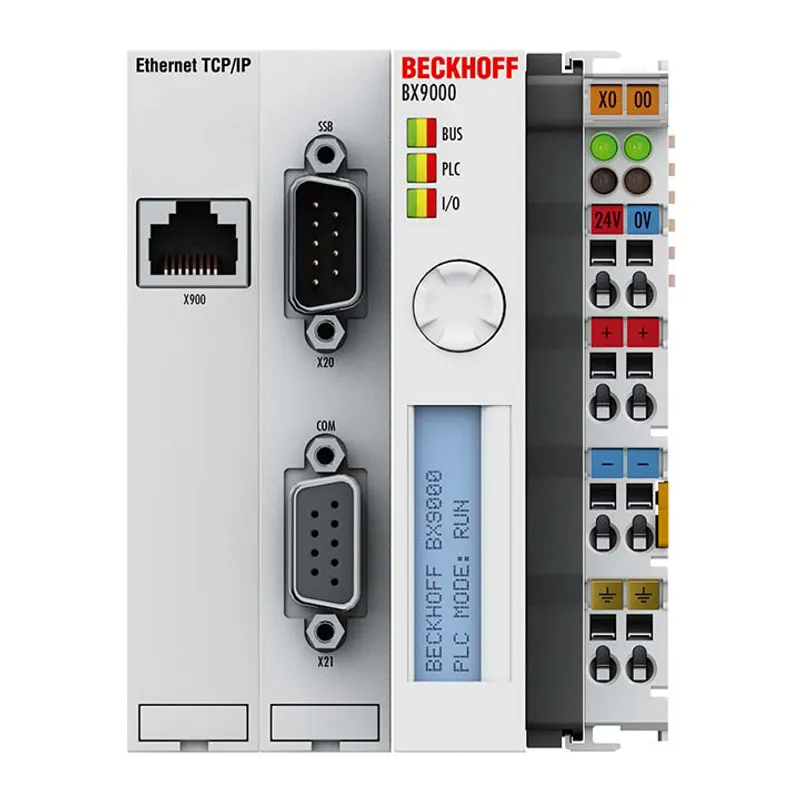

Beckhoff BX9000

Ethernet TCP/IP Bus Terminal Controller

MPN: BX9000
Category: BCxxxx, BXxxxx | Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff BX9000?

The BX9000 Bus Terminal Controller has an Ethernet slave/master interface. The controller has automatic transmission rate detection up to 100 Mbit. The address can optionally be entered via DHCP, BootP, ARP or with the joystick switch. Up to 2 kbytes of

Specifications

Programming	via TwinCAT and programming interface or Ethernet
Program memory	256 kbytes
Data memory	256 kbytes
Remanent data	2 kbytes
Persistent data	1 kbyte
Runtime system	1 PLC task
PLC cycle time	approx. 1 ms for 1,000 instructions (without I/O cycle, K-bus)
Programming languages	IEC 61131-3 (IL, LD, FBD, SFC, ST)
Online change	yes
Up/down load code	yes/yes
Number of Bus Terminals	64 (255 with K-bus extension)
Max. number of bytes fieldbus	512 byte input and 512 byte output
Max. number of bytes process image	2048 byte input and 2048 byte output
Digital peripheral signals	2,040 inputs/outputs
Analog peripheral signals	512 inputs/outputs
Protocol	TwinCAT ADS, Modbus TCP
Data transfer rates	10/100 Mbit/s, automatic recognition of the transmission rate
Bus interface	RJ45
Interfaces	COM1: 1 x RS232, COM2: 1 x RS232 or RS485
SSB	CANopen-based subsidiary bus system for the connection of further peripheral devices
Diagnostics LED	2 x power supply, 2 x K-bus
Display	FSTN display with 2 x 16 characters for diagnosis or own texts, illuminated
Switch	joystick switch for parameterisation and diagnosis
Clock	battery-powered real-time clock for time and date
Power supply	24 V DC (-15%/+20%)
Input current	140 mA + (total K-bus current)/4, 500 mA max.
Starting current	2.5 x continuous current
Current supply K-bus	1450 mA
Power contacts	max. 24 V DC/max. 10 A
Electrical isolation	500 V (power contact/supply voltage)
Weight	approx. 250 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	81 mm x 100 mm x 90 mm (BX8000: 61 mm x 100 mm x 90 mm)
