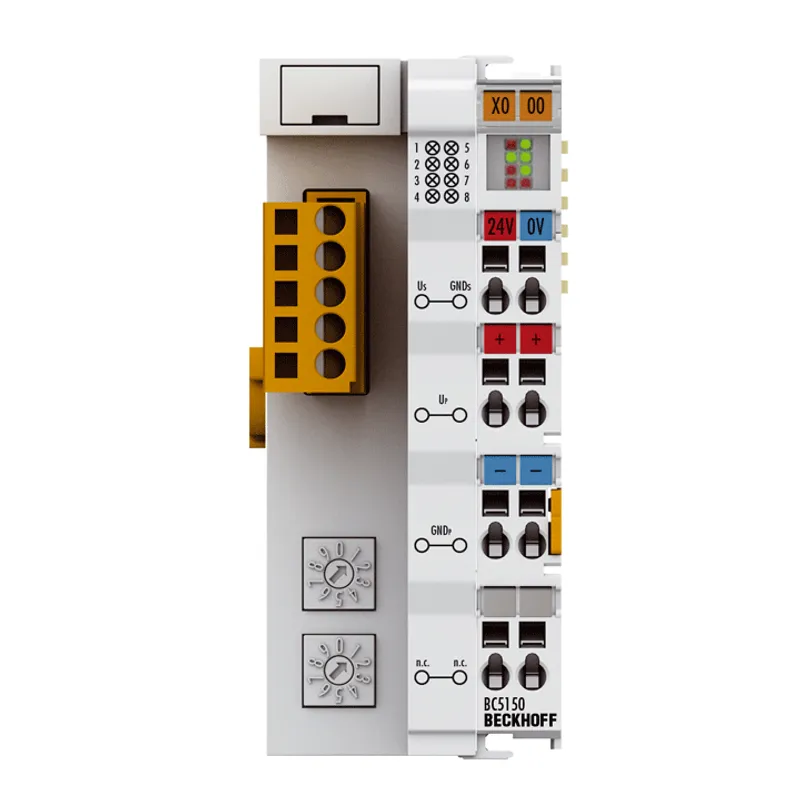

Beckhoff BC5150

CANopen Compact Bus Terminal Controller

MPN: BC5150
Category: BCxxxx, BXxxxx | Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff BC5150?

The Bus Terminal Controllers are Bus Couplers with integrated PLC functionality. The Compact BC5150 Bus Terminal Controller for CANopen extends the Beckhoff small controller series by a cost-optimized version in a compact housing. The CANopen controller

Specifications

Programming	TwinCAT (via programming interface or fieldbus)
Program memory	48 kbytes
Data memory	32 kbytes
Remanent data	2 kbytes
Runtime system	1 PLC task
PLC cycle time	approx. 3 ms for 1,000 instructions (without I/O cycle, K-bus)
Programming languages	IEC 61131-3 (IL, LD, FBD, SFC, ST)
Online change	yes
Number of Bus Terminals	64 (255 with K-bus extension)
Max. number of bytes fieldbus	16 Tx/Rx PDOs
Max. number of bytes process image	512 byte input and 512 byte output
Digital peripheral signals	2,040 inputs/outputs
Analog peripheral signals	1024 inputs/outputs
Data transfer rates	automatic detection up to 1 Mbaud
Bus interface	open style connector, 5-pin
Interfaces	programming and configuration interface
Configuration	via KS2000 or fieldbus
Power supply	24 V DC (-15%/+20%)
Input current	60 mA + (total K-bus current)/4
Current supply K-bus	1750 mA
Power contacts	max. 10 A
Electrical isolation	500 V (power contact/supply voltage)
Weight	approx. 100 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	44 mm x 100 mm x 68 mm
