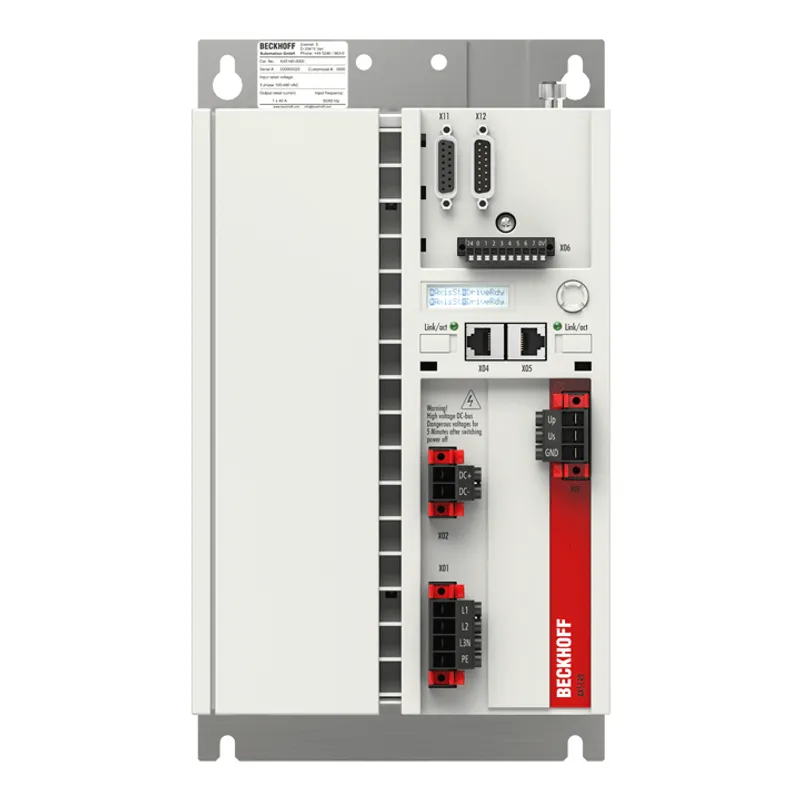

Beckhoff AX5140

Digital Compact Servo Drives 1-channel

MPN: AX5140
Category: AX5000 | Digital compact servo drives

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff AX5140?

The AX5000 single-channel servo drives offer optimal function, flexibility and cost-effectiveness. The components required for operation, such as power supply unit, EMC filter and DC link capacitors, are already integrated. The control loop, which has a

Specifications

Function	servo drive
Channels	1
Rated supply voltage	3 x 100…480 V AC ±10%
DC link voltage	max. 875 V DC
Rated output current (channel)	40 A
Peak output current (channel)	80 A
Feedback	SinCos 1 VPP, resolver, EnDat® 2.1, HIPERFACE®, BiSS® B, OCT
System bus	EtherCAT
Drive profile	SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE)
Ambient temperature (operation)	0…50°C (see documentation)
Approvals/markings	CE, cULus
Height without connectors	274 mm
Depth without connectors	232 mm
Width	185 mm

AX5140: frequently asked questions

When can AX5140 be shipped?

AX5140 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AX5140 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AX5140 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AX5140, subject to availability and destination.
