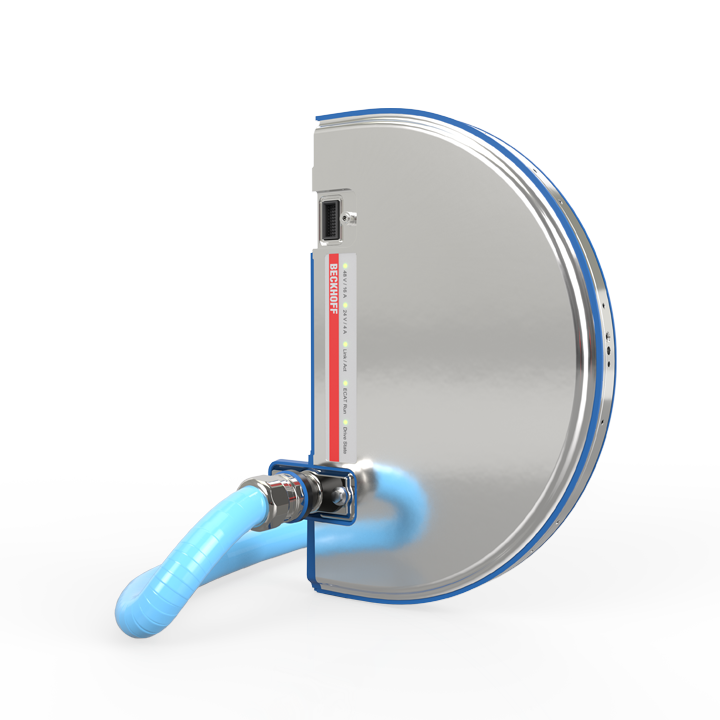

Beckhoff ATH2051

Motor module, 180° curved segment, with straight infeed

MPN: ATH2051
Category: AT2xxx, ATH2xxx | XTS motor modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ATH2051?

The motor modules with the product designation ATH205x are elements for the construction of curved XTS track sections for demanding environmental conditions. They represent a 180° curve segment (outside curve) with a clothoid-shaped geometry. Via lateral

Specifications

Magnet pitch	≥ 60 mm
Geometries	rectangle, square, circle or straight
Diameter	180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm (1)
Alignment	horizontally, vertically or at any angle from 1…179°
Peak force	ATH9001-x550 (5-pin): 90 N (specification refer to straight sections)
Continuous force	ATH9001-x550 (5-pin): 30 N (specification refers to straight sections)
Max. speed	4 m/s
Max. acceleration	10 g
Payload	up to 4 kg, higher loads with reduced dynamics
Cycle time	250 µs
Absolute accuracy	±0.25 mm within a straight module
Repeatability	±0.01 mm (standstill unidirectional)
Positioning accuracy	±0.15 mm @ 1.5 m/s within a straight module
System size	> 100 m, > 200 movers
Protection rating	IP69K (in assembled condition for a closed system)
Approvals/markings	CE, UL
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Motor type	long stator linear motor segment
Design form	curved segment, 180° (positive curve, clothoid)
Motor length	500 mm
Connection method	cover with straight feed
Material	housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone
Length per feed	max. 3 m (voltage supply, EtherCAT)
Cooling	convection
Ambient temperature (operation)	0…40°C
Rated power	768 W
Operating voltage	48 V DC
Rated current	16 A
Peak current	48 A
Control voltage	24 V DC -15/+20%
Power consumption control voltage	30 W per meter travel distance
Length	315 mm
Width	34 mm
Height	200 mm
Weight	9.6 kg
