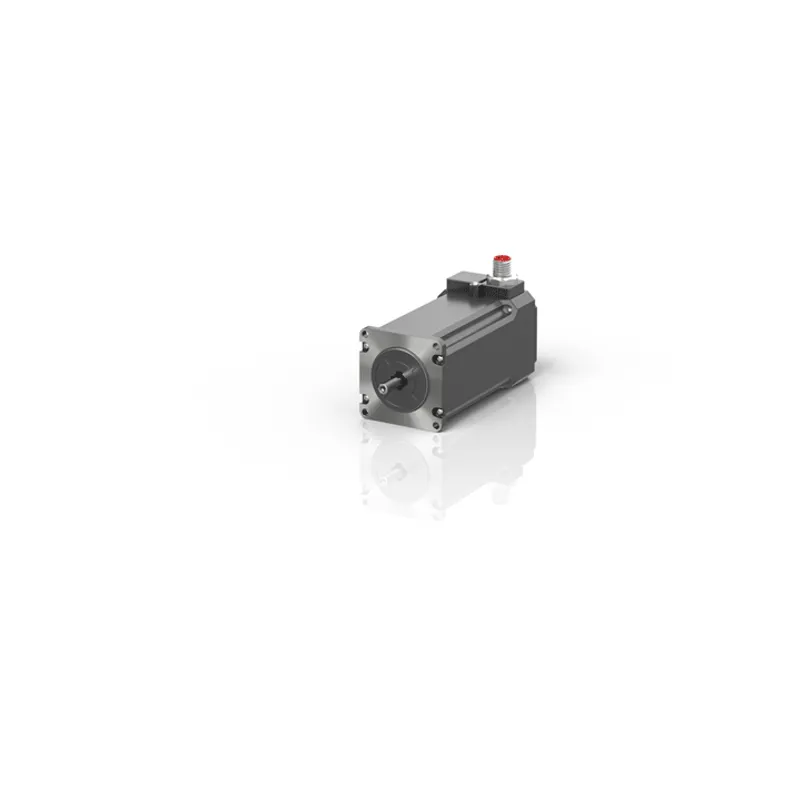

Stepper motor 1.8 Nm (M0), N2 (NEMA23/56 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AS2023 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AS2023-0Hy0 be shipped?
AS2023-0Hy0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AS2023-0Hy0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AS2023-0Hy0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AS2023-0Hy0, subject to availability and destination.
The AS2000 two-phase stepper motors with a stepper angle of 1.8° shrink the gap to the AM8000 high-performance servomotor. With their flange codes N2 (NEMA23) and N3 (NEMA34), the stepper motors comply with international standards. Users can select from
Specifications
Specifications
| Nominal voltage | 24…48 V DC |
| Holding torque | 1.80 Nm |
| Rated current | 5.60 A |
| Resolution | 1.8°/200 full steps |
| Connection method | M12 high-power |
| Ambient temperature (operation) | -10…+40°C |
| Approvals/markings | CE, UL (in preparation) |
| Protection rating | IP54 |
| a | 38.1 mm |
| b | 6.35 mm |
| d | 20.6 mm |
| k | 121 mm |
| k (with encoder) | 134 mm |
| x | 105.1 mm |
| l | 66.67 mm |
| r | 56 mm (NEMA23) |
