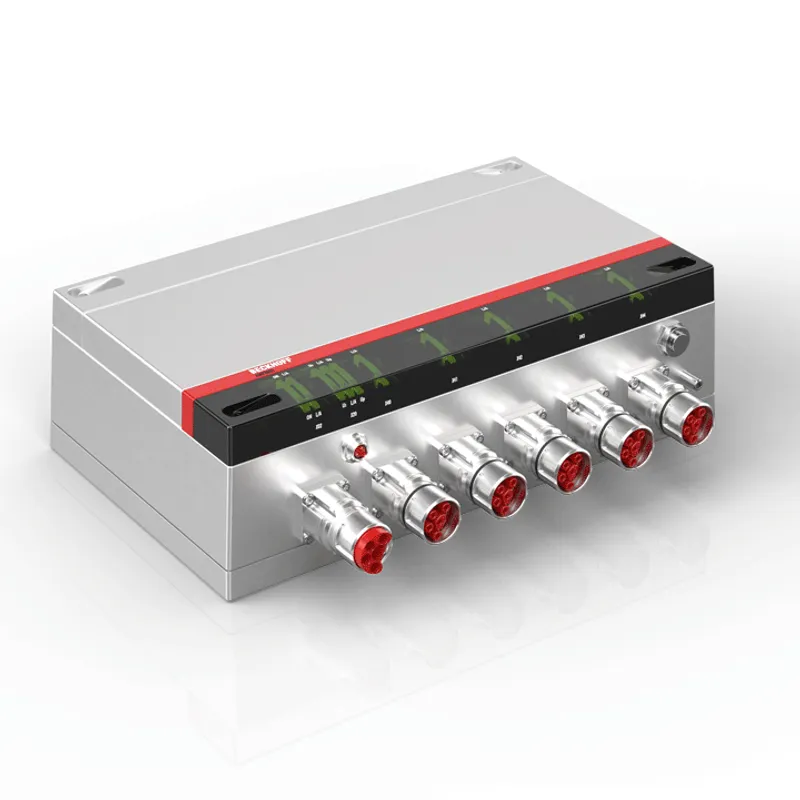

Beckhoff AMP8805-1000-0000

Distribution module for AMP8000

MPN
AMP8805-1000-0000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AMP8805-1000-0000?

Via the AMP8805 distribution module, the AMP8000 system can be cascaded using just one short cable in such a way that even complex machines and lines can be implemented in simple topologies. Up to five outputs are available to connect further distributed

Specifications

Specifications

Functiondistribution module
Channels5
EtherCAT P outputs1 x M8
DC link voltage430…848 V DC
DC link output current∑ max. 20 A DC
System busEtherCAT
Drive profileCiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation)0…40°C
Approvals/markingsCE, cULus
Protection ratingIP65
Height without mating connectors217 mm
Depth86.4 mm
Width289.9 mm

AMP8805-1000-0000: frequently asked questions

When can AMP8805-1000-0000 be shipped?

AMP8805-1000-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AMP8805-1000-0000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AMP8805-1000-0000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AMP8805-1000-0000, subject to availability and destination.
