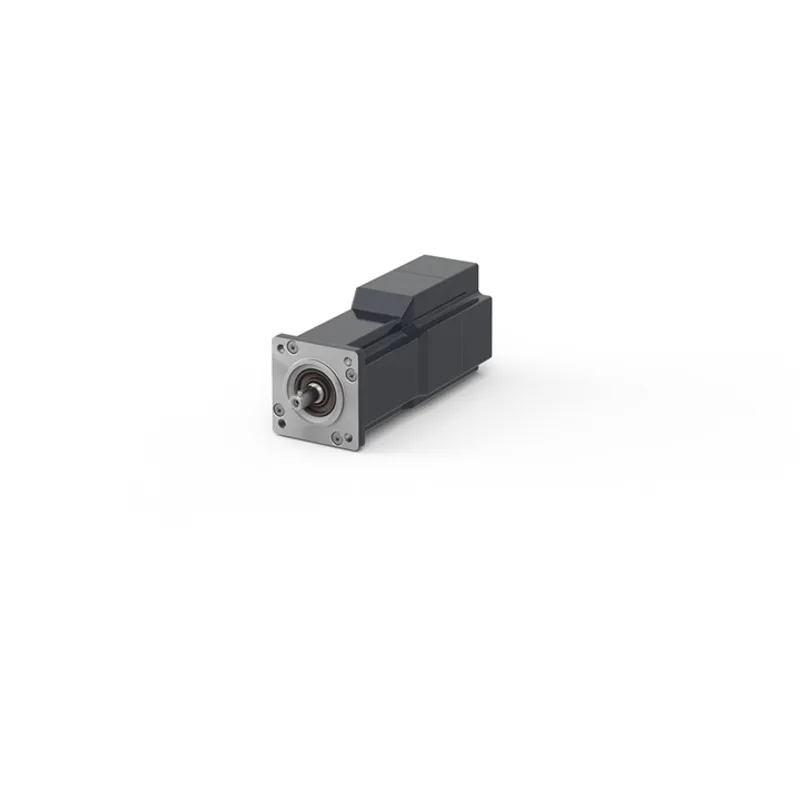

Compact integrated servo drive 0.48 Nm (M0), F2 (58 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AMI8121 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AMI8121-abcc-wFyz be shipped?
AMI8121-abcc-wFyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AMI8121-abcc-wFyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AMI8121-abcc-wFyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AMI8121-abcc-wFyz, subject to availability and destination.
The integrated AMI8121 servo drive combines servomotor, output stage and fieldbus connection in a space-saving design in the voltage range
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor with integrated servo drive |
| Nominal voltage | 24…48 V DC |
| Standstill torque | 0.48 Nm |
| Rated torque | 0.45 Nm |
| Peak torque | 1.89 Nm |
| Rated speed | 3000 min-1 |
| Rated power | 0.141 kW |
| Rotor moment of inertia | 0.139 kgcm² |
| System bus | EtherCAT |
| Drive profile | MDP profile, DS402 profile |
| Safe stop functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Safety standard | EN 61508-1-3:2010 (up to SIL 3), IEC 62061:2021 (maximum SIL 3), EN ISO 13849-1:2015 (up to Cat 4, PL e) and EN 61800-5-2:2017 |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Connection technology | M12, L-coded/M8, screw type, 3-pin, A-coded/M8, screw type, 4-pin, A-coded |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| a | 40 j6 |
| b | 9 k6 |
| d | 20 mm |
| l | 63 mm |
| r | 58 mm |
| k (without brake) | 155 mm |
| k (with brake) | 189.5 mm |
