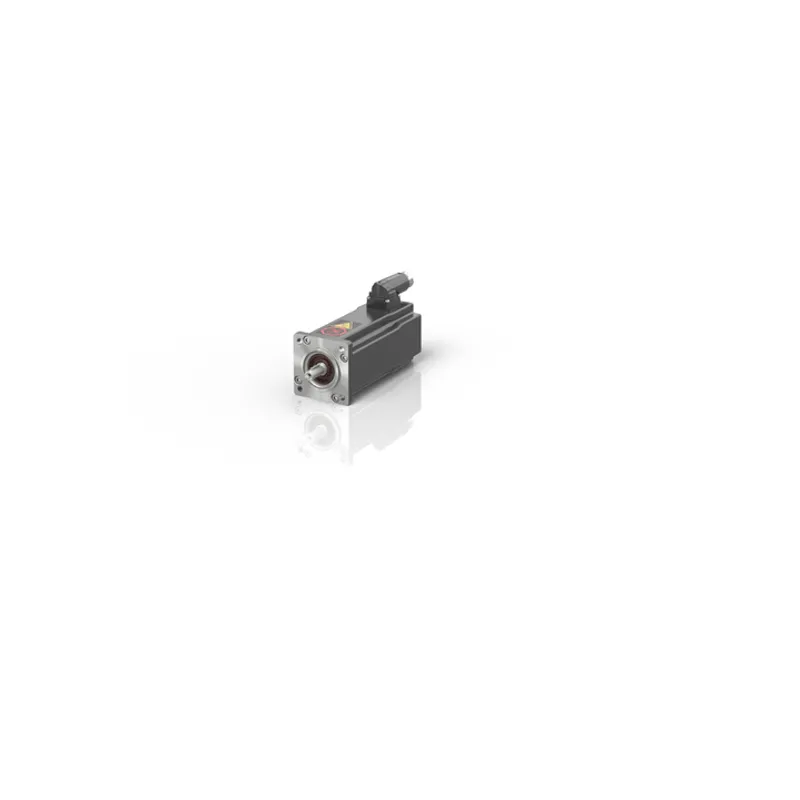

Servomotor 0.50 Nm (M0), F2 (58 mm)

Name: Beckhoff AM8121-wFyz – Servomotor 0.50 Nm (M0), F2 (58 mm)
Brand: Beckhoff
SKU: AM8121-wFyz

MPN: AM8121-wFyz · Brand: Beckhoff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	AM8121
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AM8121-wFyz be shipped?

AM8121-wFyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AM8121-wFyz in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AM8121-wFyz and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8121-wFyz, subject to availability and destination.

The AM8121 low-voltage servomotor is suitable for highly dynamic drive solutions in compact design in the voltage range

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	24…48 V DC
Standstill torque	0.50 Nm
Rated torque	0.50 Nm
Peak torque	2 Nm
Rated speed	3000 min-1
Rated power	0.16 kW
Standstill current	4.00 A
Peak current	17 A
Torque constant	0.13 Nm/A
Rotor moment of inertia	0.134 kgcm²
Motor feedback	resolver, single-turn absolute encoder OCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, EnDat® 3, 19 bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate
Cooling	convection
Connection technology	itec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
a	40 j6
b	9 k6
d	20 mm
l	63 mm
r	58 mm
k (without brake)	111.5 mm
k (with brake)	146 mm
