Beckhoff AL806F-1Tyz-0000

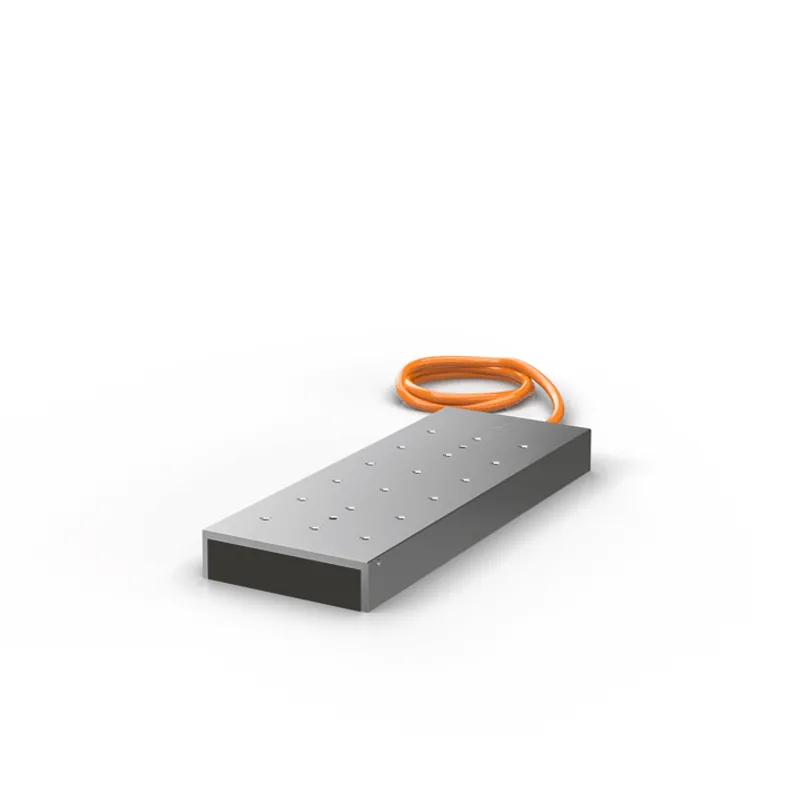

Linear servomotor, 6750 N (Fmax), water cooling

MPN: AL806F-1Tyz-0000
Category: AL806F

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AL806F-1Tyz-0000?

The AL806F linear servomotor is suitable for highly dynamic and powerful linear axes with a pole pair distance of 24 mm. The optimized product design and the modular coil concept enable maximum force density in the smallest mounting space. The length of

Specifications

Motor type	3-phase synchronous linear servomotors
Nominal voltage	100…480 V AC
Max. speed	6 m/s
Peak force	6750 N
Continuous force	3000 N
Peak current	100 A
Continuous current	36 A
Force constant	83 N/A
Cooling	water cooling
Connection technology	M40 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Protection rating	IP64
Overall width	W6 (130 mm)
Material	aluminum
b	130 mm
la	782 mm
h	47 mm

AL806F-1Tyz-0000: frequently asked questions

When can AL806F-1Tyz-0000 be shipped?

AL806F-1Tyz-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AL806F-1Tyz-0000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AL806F-1Tyz-0000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AL806F-1Tyz-0000, subject to availability and destination.
