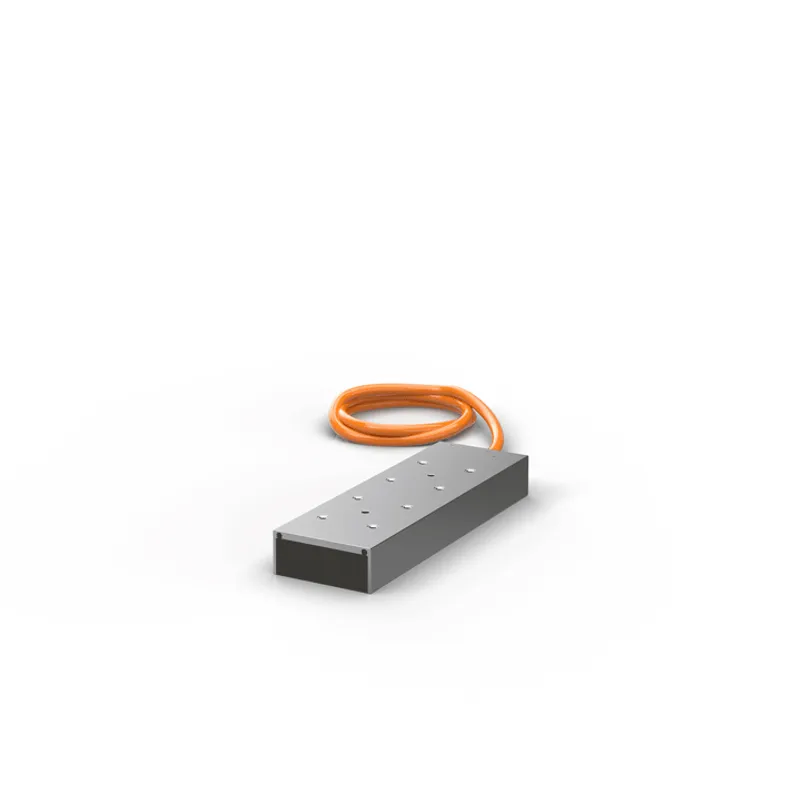

Beckhoff AL8046-0Kyz-0000

Linear servomotor, 1380 N (Fmax), convection/water cooling

MPN: AL8046-0Kyz-0000
Category: AL8046

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AL8046-0Kyz-0000?

The AL8046 linear servomotor is suitable for highly dynamic and powerful linear axes with a pole pair distance of 24 mm. The optimized product design and the modular coil concept enable maximum force density in the smallest mounting space. The length of

Specifications

Motor type	3-phase synchronous linear servomotors
Nominal voltage	100…480 V AC
Max. speed	7 m/s
Peak force	1380 N
Continuous force	600 N
Peak current	24 A
Continuous current	8.5 A
Force constant	71 N/A
Cooling	convection, water cooling
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Protection rating	IP64
Overall width	W4 (80 mm)
Material	aluminum
b	77 mm
la	335 mm
h	40 mm
