Beckhoff – AL2403 Linear Servomotor, 120 N (Fp), convection
Discontinued by Beckhoff — we can still source the original AL2403 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Motion service products (discontinued) |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AL2403 now that it is discontinued?
Yes. Beckhoff has discontinued the AL2403, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AL2403 be shipped?
AL2403 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AL2403 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AL2403 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AL2403, subject to availability and destination.

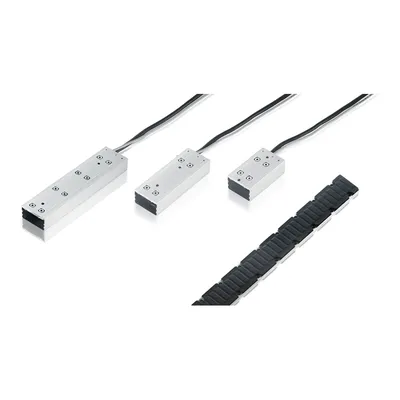

The primary parts of the AL2000 contain a grooved laminated core with copper windings placed inside and are primarily used with motion. The smallest series – the AL24xx – consists of four different motors, each with an identical width of 50 mm (including
Beckhoff AL2403 — Linear Servomotor, 120 N (Fp), convection. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Motor type | 3-phase synchronous linear servomotors |
| Nominal voltage | 100…480 V AC |
| Winding type | S |
| Peak force | 120 N |
| Max. speed | 12 m/s |
| Continuous force with air cooling | 60 N |
| Peak current | 4.1 A |
| Continuous current with air cooling | 1.54 A |
| Force constant | 39 N/A |
| Cooling | convection |
| Connection technology | M23 plug (power) + D-sub plug (thermo-protective plug) |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, CSA |
