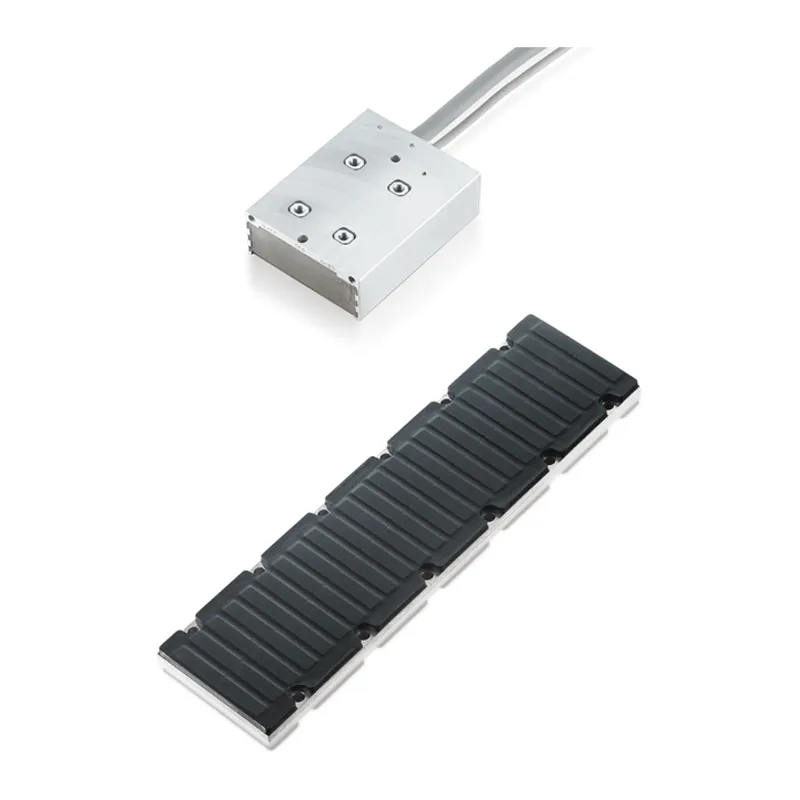

Beckhoff – AL2003 Linear Servomotor, 225 N (Fp), convection

MPN: AL2003 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original AL2003 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Motion service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AL2003 now that it is discontinued?

Yes. Beckhoff has discontinued the AL2003, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AL2003 be shipped?

AL2003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AL2003 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AL2003 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AL2003, subject to availability and destination.

The primary parts of the AL2000 contain a grooved laminated core with copper windings placed inside and are primarily used with motion. The medium-size series – the AL20xx – consists of seven different motors, each with an identical width of 80 mm

Beckhoff AL2003 — Linear Servomotor, 225 N (Fp), convection. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Motor type	3-phase synchronous linear servomotors
Nominal voltage	100…480 V AC
Winding type	S
Peak force	225 N
Max. speed	7 m/s
Continuous force with air cooling	75 N
Peak current	6.5 A
Continuous current with air cooling	2.28 A
Force constant	46 N/A
Cooling	convection
Connection technology	M23 plug (power) + D-sub plug (thermo-protective plug)
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, CSA
