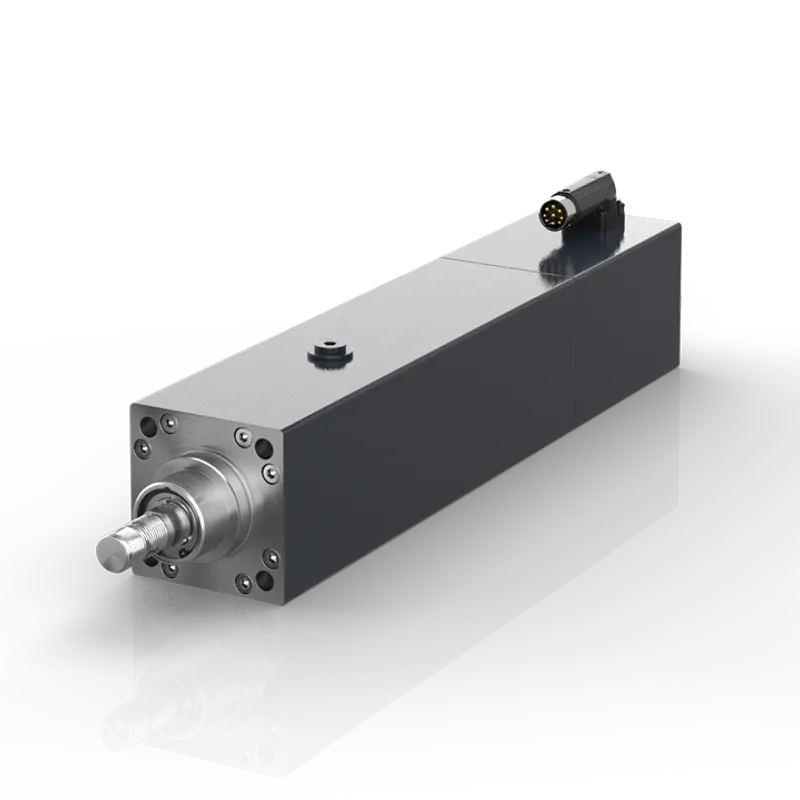

Electric cylinder 6000 N (Fmax), 0.24 m/s (vmax)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AA3133 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AA3133-4xyz be shipped?
AA3133-4xyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AA3133-4xyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AA3133-4xyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AA3133-4xyz, subject to availability and destination.
Depending on the spindle pitch, the electric cylinder AA3133 offer a peak force of 6000…12,000 N and a maximum speed of 0.12 to 0.24 m/s in a voltage range of 24 to 48 V DC. The dimensions of the AA3133 correspond in flange dimension and screw-on points
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor with integrated spindle drive |
| Nominal voltage | 24…48 V DC |
| Peak force | 6000 N |
| Continuous force | 1400 N |
| Peak current | 32 A |
| Continuous current | 8 A |
| Max. speed | 0.24 m/s |
| Max. acceleration | 20 m/s² |
| Max. stroke | 200 mm |
| Spindle pitch | 10 mm with anti-twist protection |
| Cooling | convection |
| Motor feedback | OCT, 24 bit, SIL 2-capable, multi-turn absolute encoder |
| Connection method | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE |
| Protection rating | IP50, IP54 with venting hose instead of venting plug |
| Design form | flange according to ISO 15552, flange-mounted according to IM B14, IM V18, IM V19 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| a | 45 f8 |
| b | M16 x 1.5 |
| d | 32 mm |
| l | 56.5 mm |
| r | 75 mm |
| k | 380 mm (Order option z (holding brake) has no influence on the overall length ot the motor) |
